CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
10.4 MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED

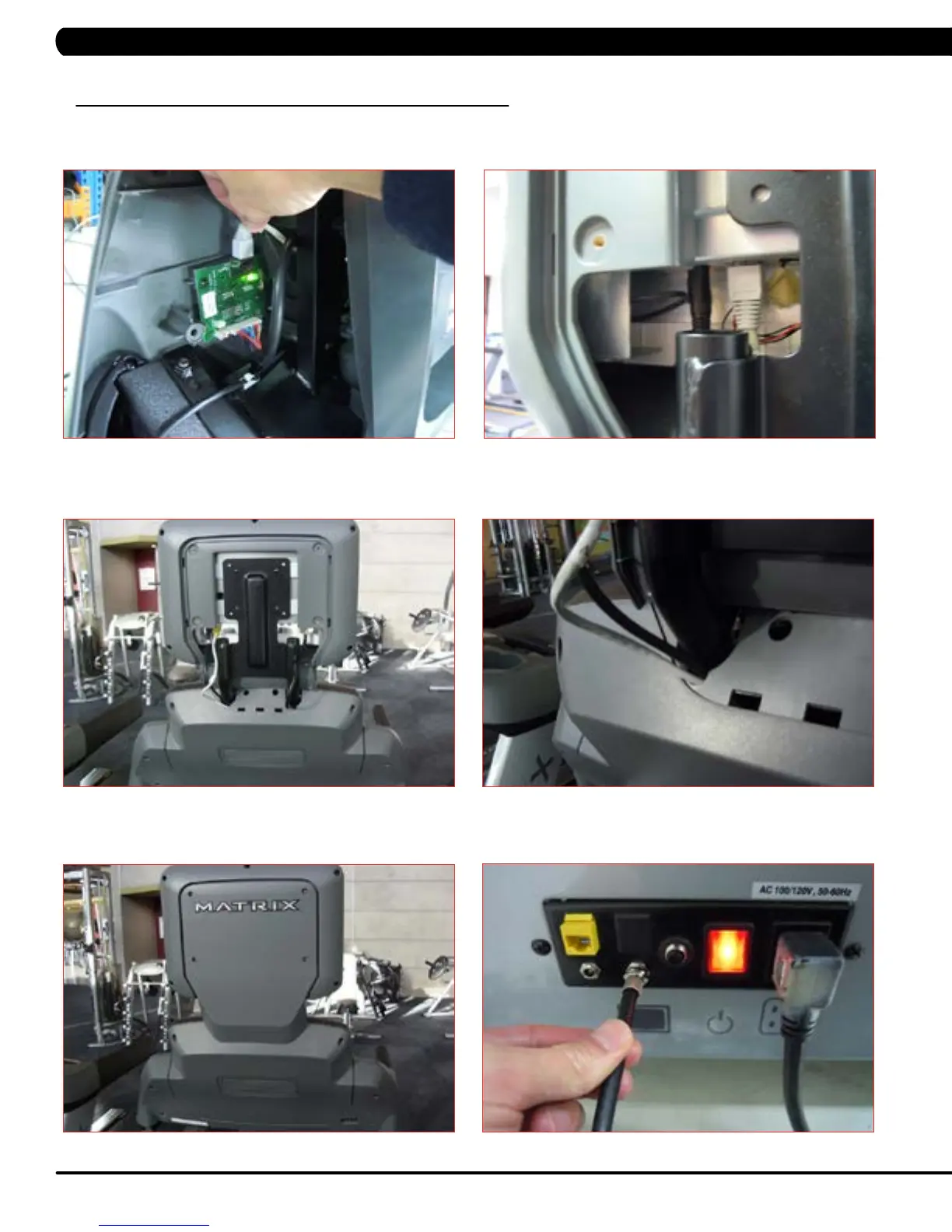

FIGURE S FIGURE T
19) Plug the TV controller wire into the MYE TV port on the translator board (Figure S). Plug the other side of TV controller wire into the port on
the TV (Figure T).
20) Install the console back cover removed in Step 2 (Figure U). NOTE: Make sure that the coax, power, and controller wires are tucked in the
slot in the cover (created by removing the small Matrix logo cover) (Figure V).
21) Install the TV back cover onto the TV (Figure W).
22) Plug a working coax cable with a signal strength of 10 Hz to the port at the base of the treadmill (Figure X).
FIGURE U FIGURE V
FIGURE W FIGURE X
