Matrix T5X-04 User Manual

30
1. If you have no picture at all check to see if you have any status lights on your controller or TV. Status lights should be red when off or in
standby mode, and green when the TV is powered on. If you have lights of any color skip to Section 8.19.
2. Remove the back covers (Figure A) and check the connection of the TV power wire at the TV (Figure B). Also check the TV power wire
connection at the console (Figure C).
3.Afteryouhaveveriedallconnectionsaresecureandaproblemstillexistsverifypowerattheoutlet(FigureD).Iftheoutletisnotoutputting
120Volts,checktnessroompower.
4. If internal TV power wire connections are good, verify 12 Volts power at the TV power wire where it plugs into the TV (wire in Figure B, shown
with multi - meter in Figure E). If 12 Volts are present, the issue is likely with the TV itself, contact Matrix.
8.18 ENTERTAINMENT TROUBLESHOOTING -TV WILL NOT TURN ON

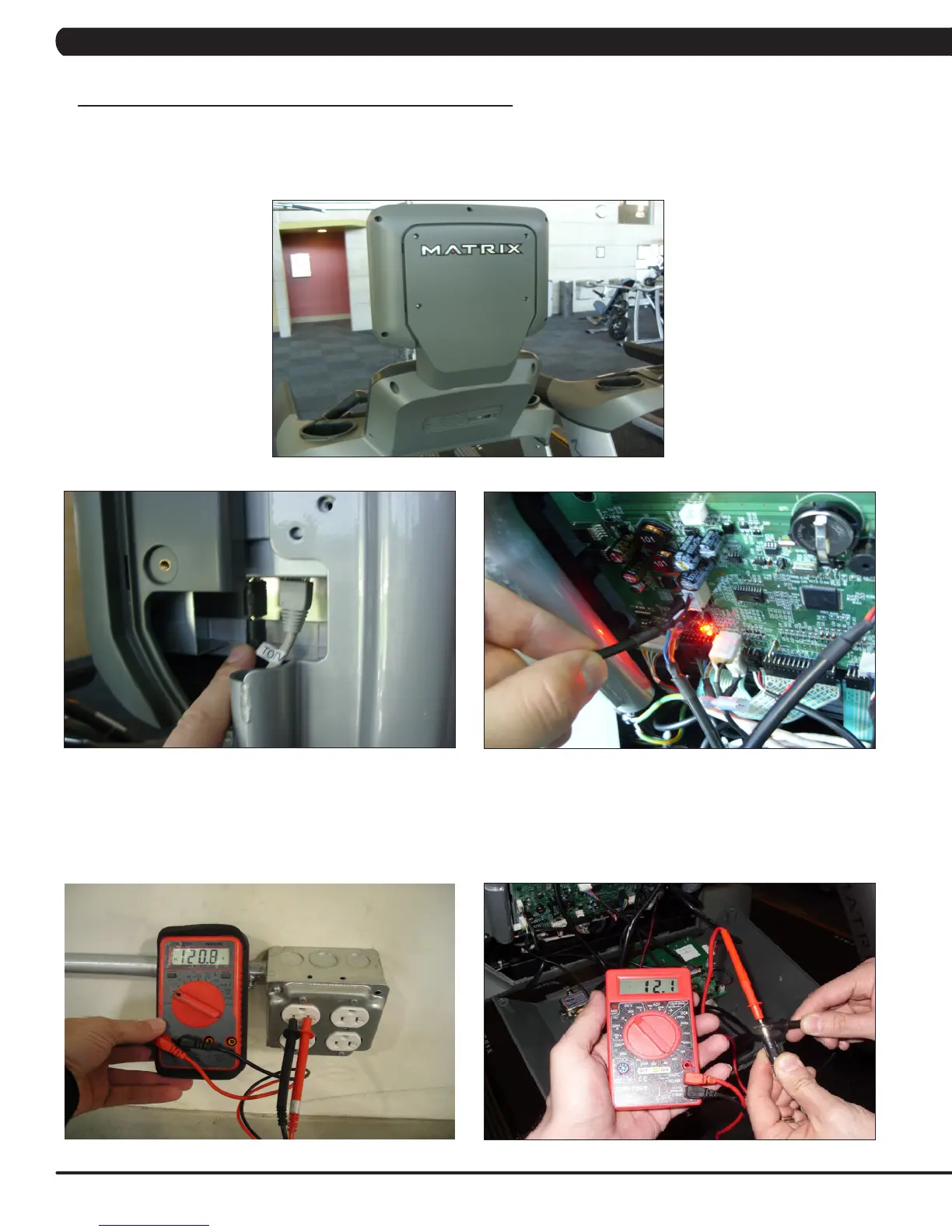

FIGURE A
FIGURE B FIGURE C
FIGURE D
FIGURE E
