9.15 HANDLE BAR SERVICE
1) Turn off power and disconnect the cord from the machine.
2) All items on the handle bar are removed using a Phillips screwdriver from the underside of the bar.
3) Once the screws are removed, lift the part carefully and disconnect any wire connections.
4)ReplacepartsasneededonhandlebarincludingtheQuickStartKeyandtheHeartRateGripPlates(FiguresA-F).

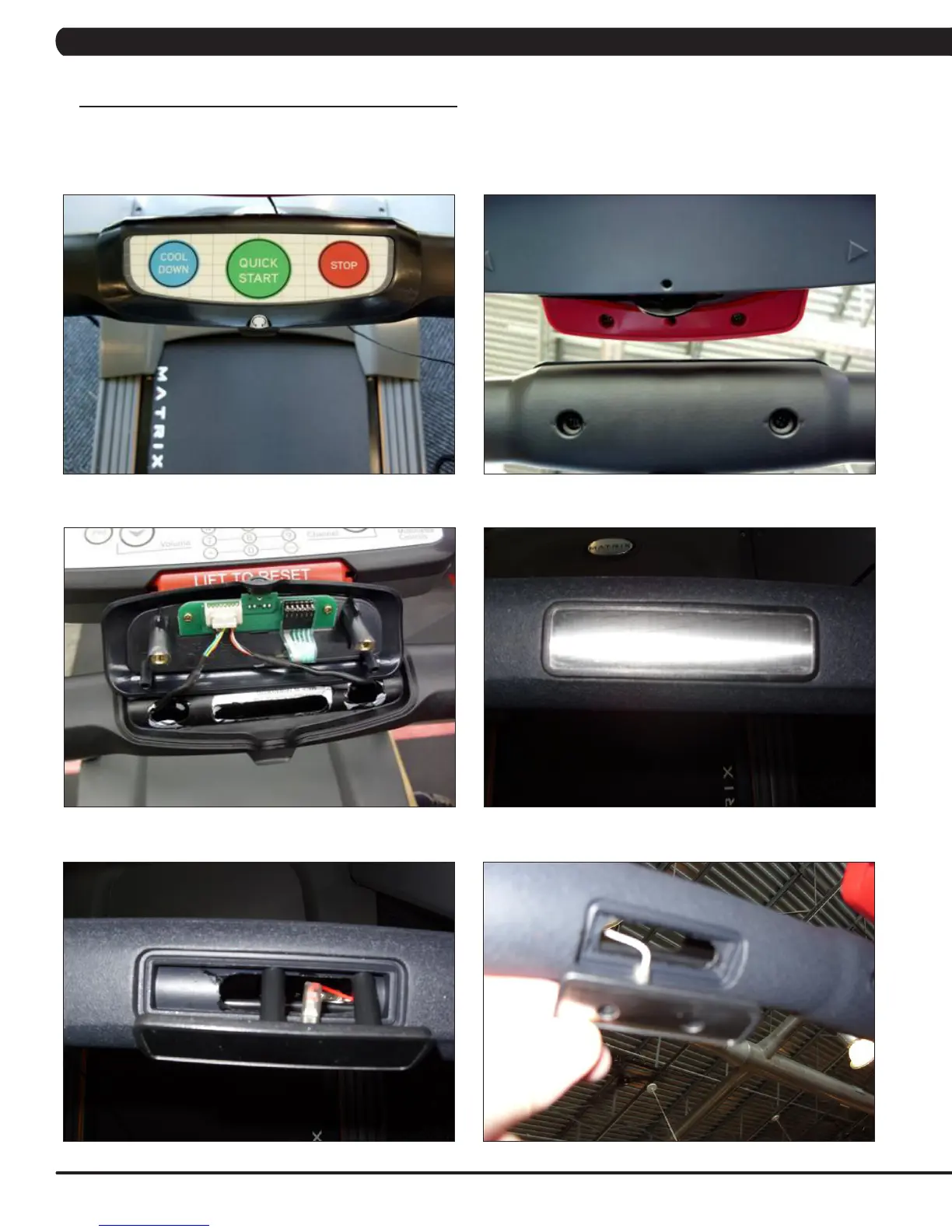

FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
CHAPTER 9: PART REPLACEMENT GUIDE
