38

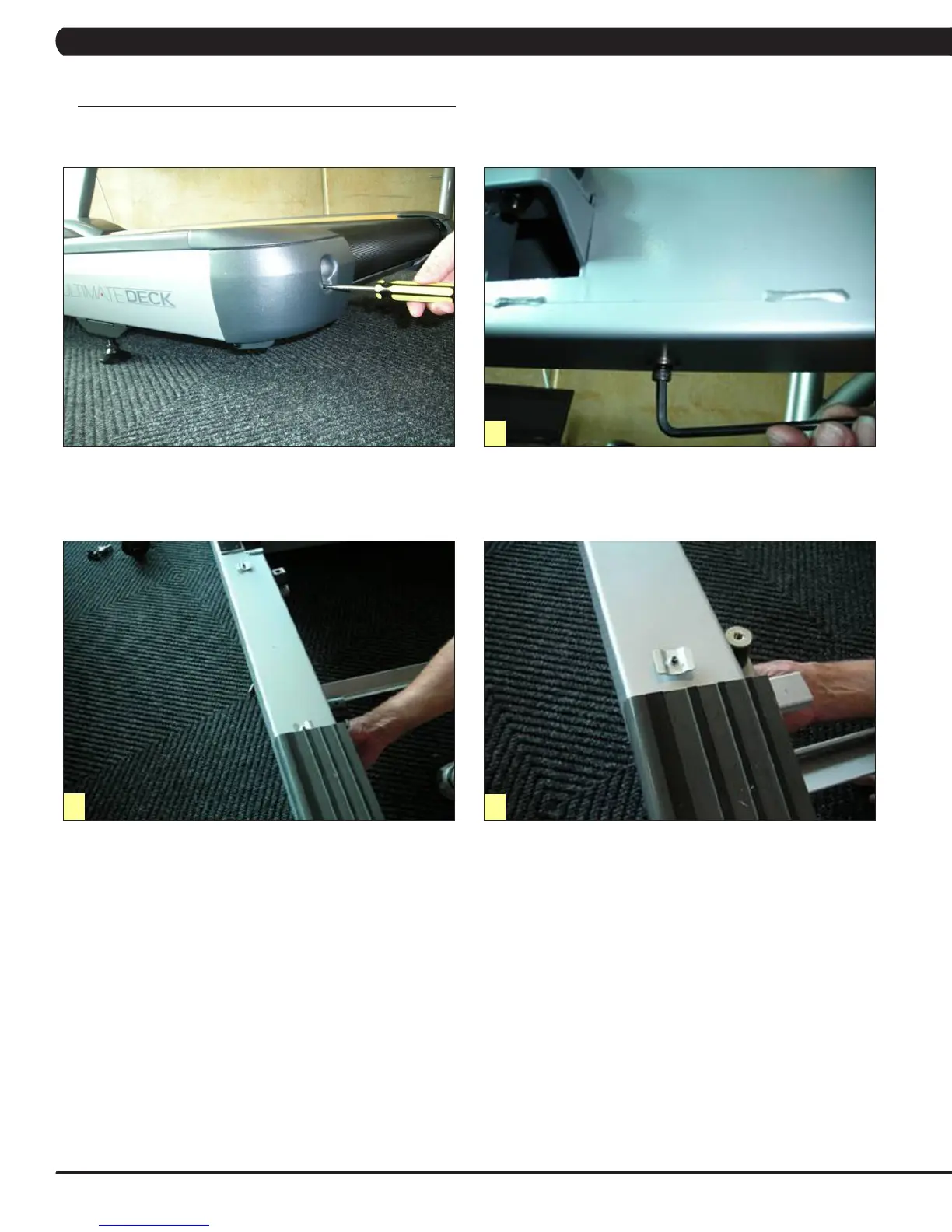

9.7 SIDE RAIL REPLACEMENT
1) Remove the end cap using a Phillips screwdriver (Figure A).
2) Loosen the four screws under the frame using a 5 mm Allen wrench (Figure B).
3) Slide the rail off the back of the treadmill (Figures C & D).
4) Reverse Steps 1-3 to install a new side rail.
5) After reinstalling the side rail, make sure end cap is on first before tightening screws for proper gap spacing. NOTE: Be careful not to over
tighten the screws, or they will poke through the top of the side rail.
FIGURE A FIGURE B
FIGURE DFIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
