9.12 CONSOLE REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the six 6 mm screws from underneath the console. There are arrows stamped in the plastic at the proper openings (Figure A).
3) Move the console away from the console frame and disconnect the console cable connectors to remove the console Figure B).
4) Reverse Steps 1-3 to install a new console. NOTE: Be sure to connect the 4 console cable connections before securing the console to the
console frame (Figure C).
5) Auto Calibration must ALWAYS be run after replacing the console (see Section 3.4).

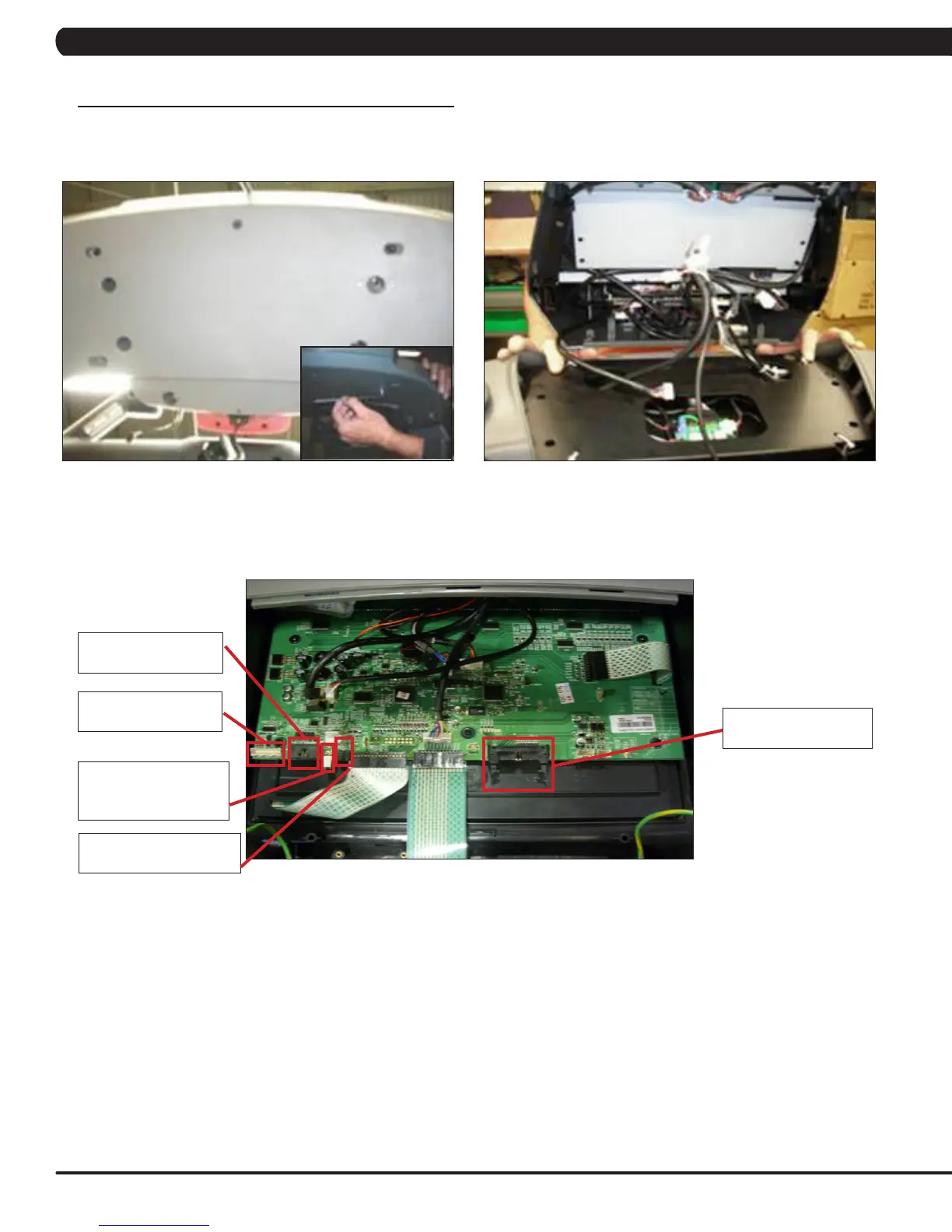

FIGURE A
FIGURE B
FIGURE C
20 pin gray connector
from the HR board
8 pin white connector
from the console cable
8 pin black connector
from the console cable
This port is not used
with the Delta MCB (is
used with the DCI MCB)
2 pin black connector from
the emergency stop
CHAPTER 9: PART REPLACEMENT GUIDE
