9.9 MOTOR REPLACEMENT

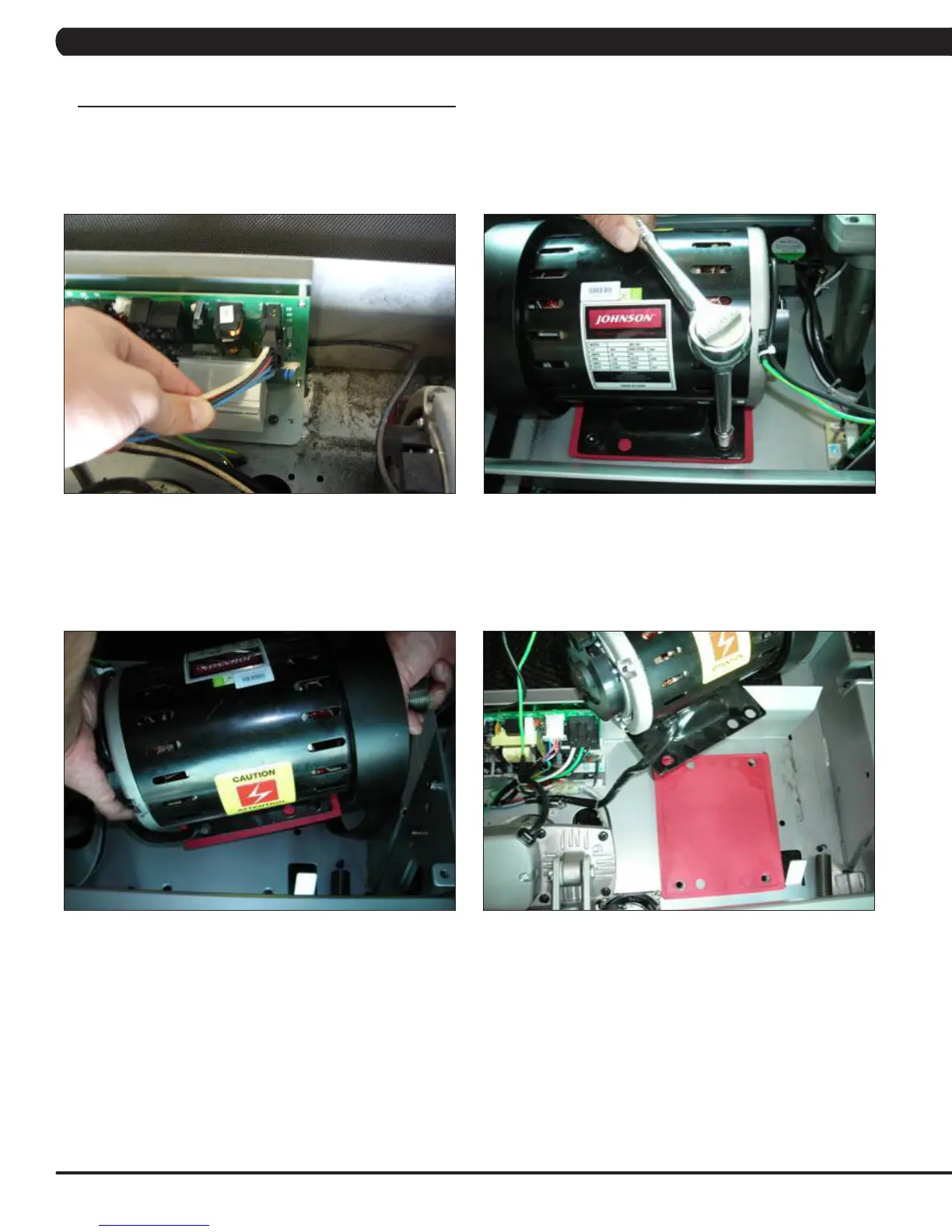

1) Turn off power and disconnect the cord from the machine.
2) Remove the motor cover as outlined in Section 9.1.
3) Release the drive belt tensioner as outlined in Section 9.5.
4) Disconnect the motor power cable from the MCB (Figure A).
5) Use an 8 mm Allen wrench to remove the four motor mounting screws (Figure B).
6) Lift the motor away from the treadmill (Figure C).
7) Reverse Steps 1-6 to install a new motor. NOTE: When reinstalling the motor, make sure the red vibration pad is in place (Figure D).
NOTE: The wire from the speed sensor on the motor is no longer used and can be tie strapped to the MCB bracket.
8) Auto Calibration must ALWAYS be run when installing a new motor. (see Section 3.4)
FIGURE A FIGURE B
FIGURE C FIGURE D
