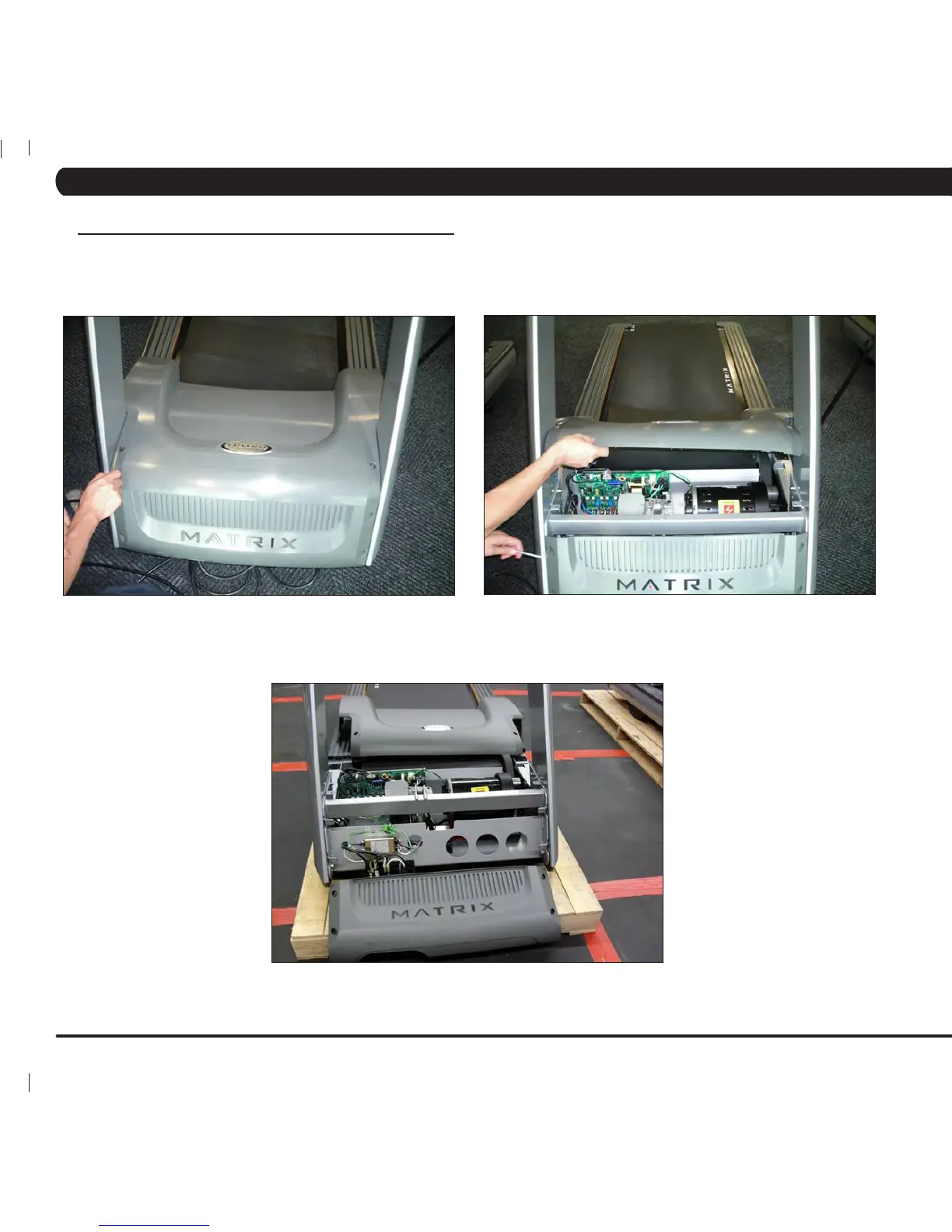

9.1 PLASTIC SHROUD REMOVAL
1) Remove the front shroud using a 6 mm Allen wrench (Figures A & B).
2) The shroud is split into two pieces. The upper shroud is held with two screws and velcro, the lower shroud is held with four screws.
3) Both covers are removed (Figure C).
FIGURE A FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
