CHAPTER 9: PART REPLACEMENT GUIDE
9.6 RUNNING BELT REMOVAL
1) Remove the front shrouds as outlined in Section 9.1.
2) Remove the rear roller as outlined in Section 9.2.
3) Remove the deck as outlined in Section 9.3.
4) Remove the front roller as outlined in Section 9.5.

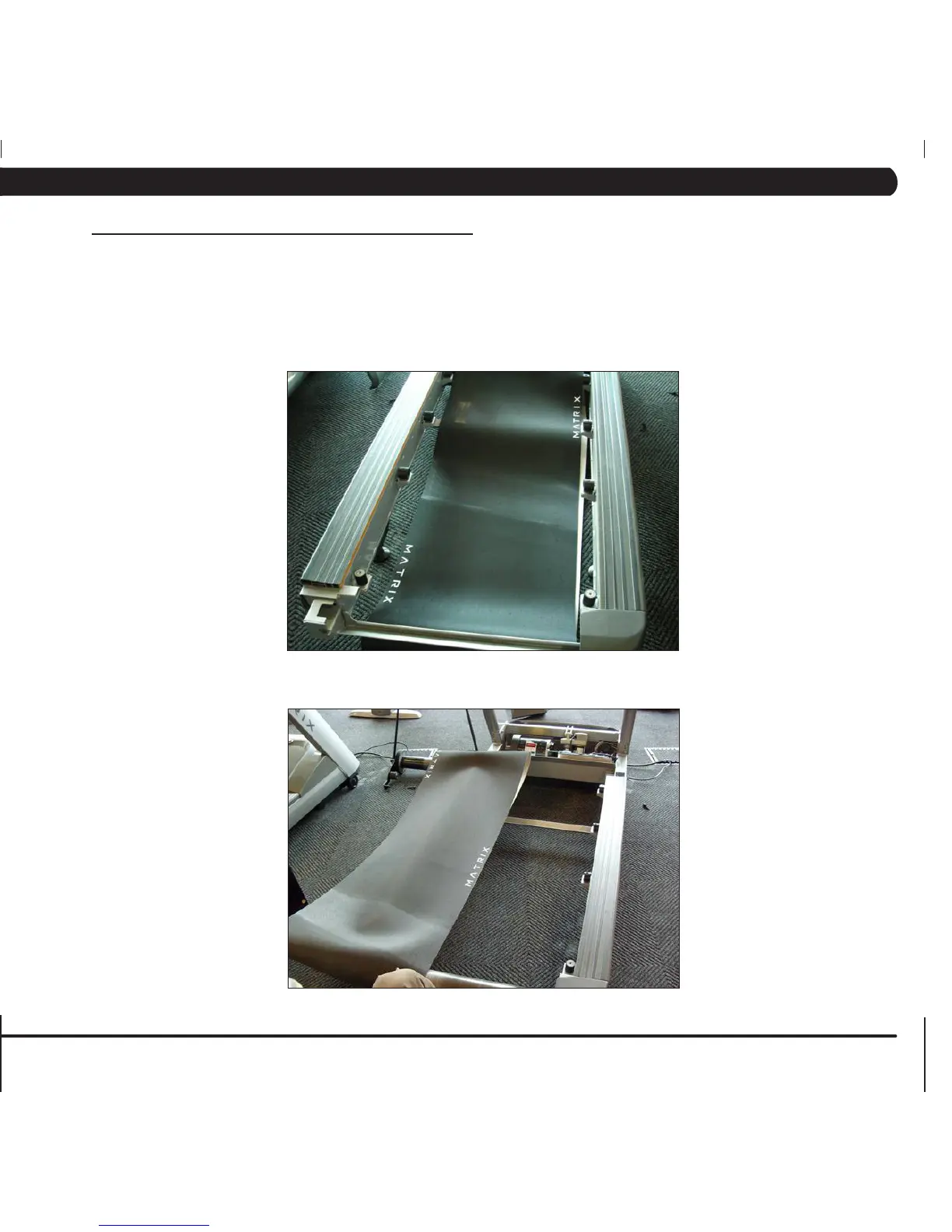

5) Remove the running belt and replace with a new belt (Figures A & B).
6) New running belts should ALWAYS be installed on a new deck surface (deck should either be flipped or replaced to gain a new surface).
