9.3 DECK REMOVAL
1) Remove the front shroud as outlined in Section 9.1.
2) Remove the four deck screws using a 5 mm Allen wrench (Figure A).
3) Remove the deck from the running belt (Figures B & C).
4) Be careful not to pinch fingers during removal / installation of deck board.
5) Deck is waxed on both sides so opposite side surface may be usable.
6) New deck surfaces must ALWAYS be matched to a new running belt.

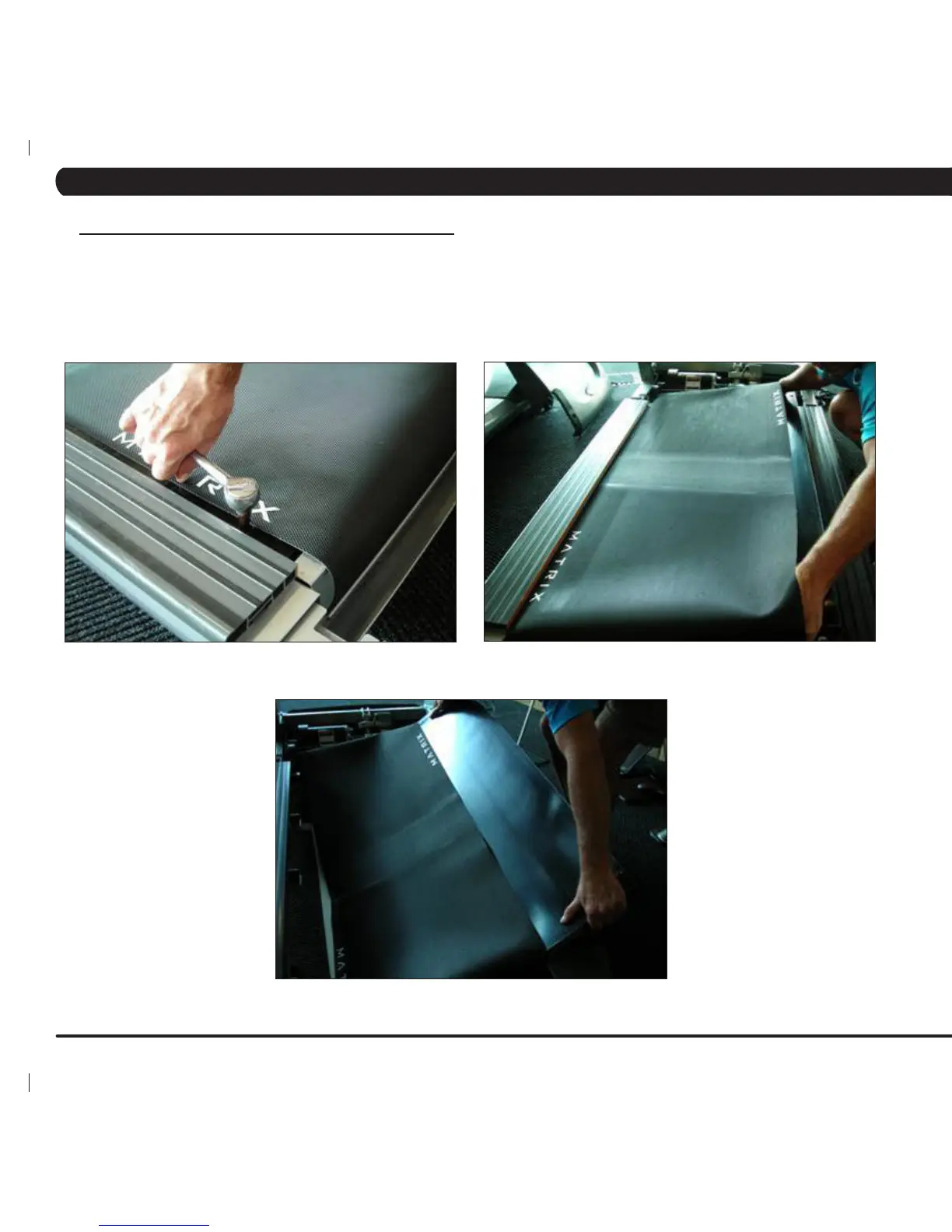

FIGURE A
