60
9.9 MOTOR REMOVAL
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the unit and disconnect the cord from the machine.
2) Remove the front shrouds as outlined in Section 9.1.
3) Release the drive belt tensioner as outlined in Section 9.5.
4) Disconnect the motor power cable from the MCB (Figure A).
5) Using an 8 mm Allen wrench, remove the four motor mounting screws (Figure B).
6) Lift the motor away from the treadmill (Figure C).
7) When reinstalling the motor, make sure the red vibration pad is in place (Figure D)
8) Auto Calibration must ALWAYS be run when installing a new motor. (see Section 3.5)

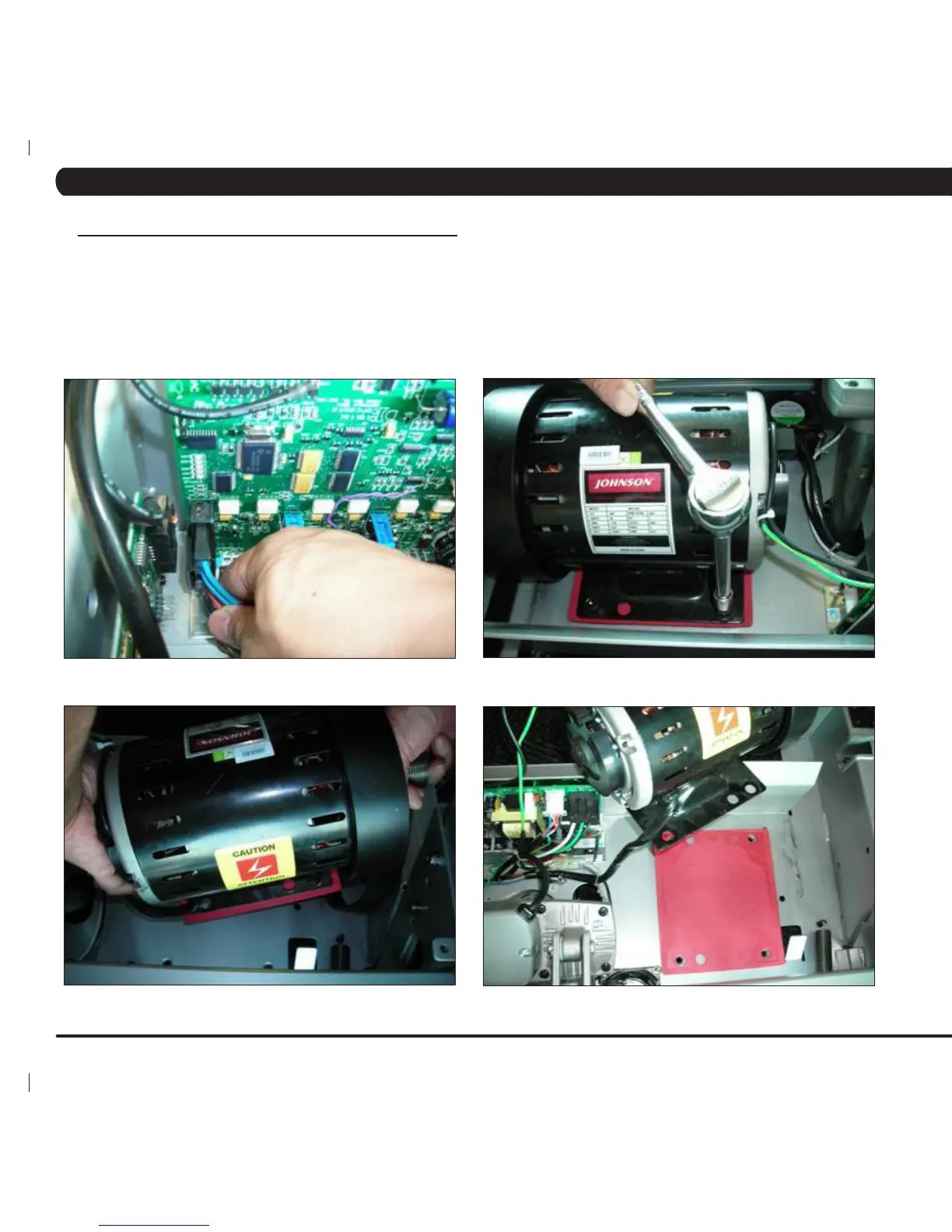

FIGURE A
FIGURE B
FIGURE C FIGURE D
