9.12 INCLINE MOTOR REMOVAL
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the unit and disconnect the cord from the machine.
2) Lift the treadmill and support it so that the front wheels are off the floor, or the unit may be tipped on its side (Figure A).
3) Remove the clip from the pin attaching the incline motor to the rack (Figures B & C).
4) Disconnect the incline motor power cable from the MCB (Figure D).
5) Disconnect the pin from the incline motor (Figure E).
6) Lift the incline motor away from the treadmill (Figure F).
7) When installing the new incline motor, make sure to replace the white washers at the top and bottom (Figure G).
8) Auto Calibration must ALWAYS be run after replacing the incline motor (see Section 3.5).

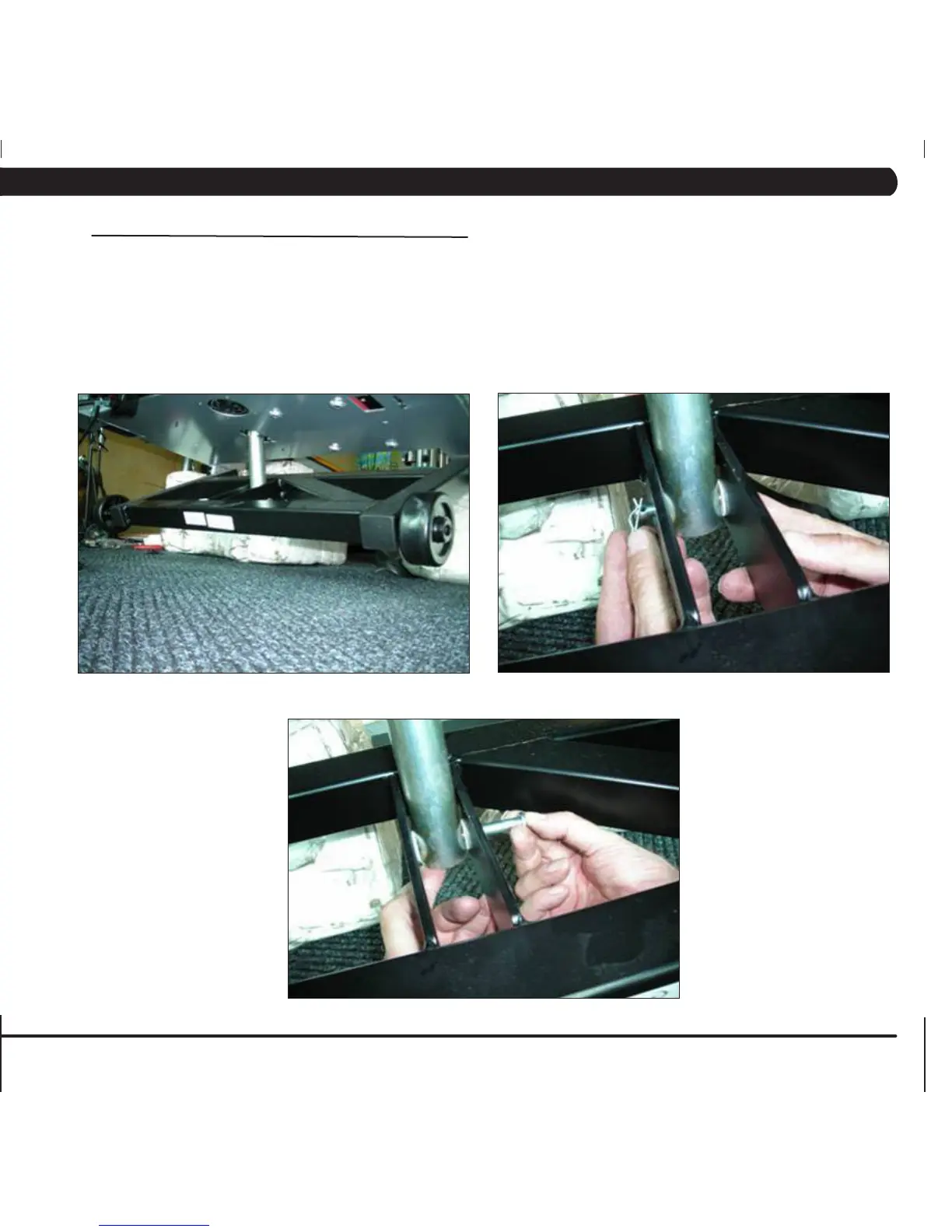

FIGURE A
FIGURE B
FIGURE C
