8.2 HEART RATE HANDLEBAR REPLACEMENT

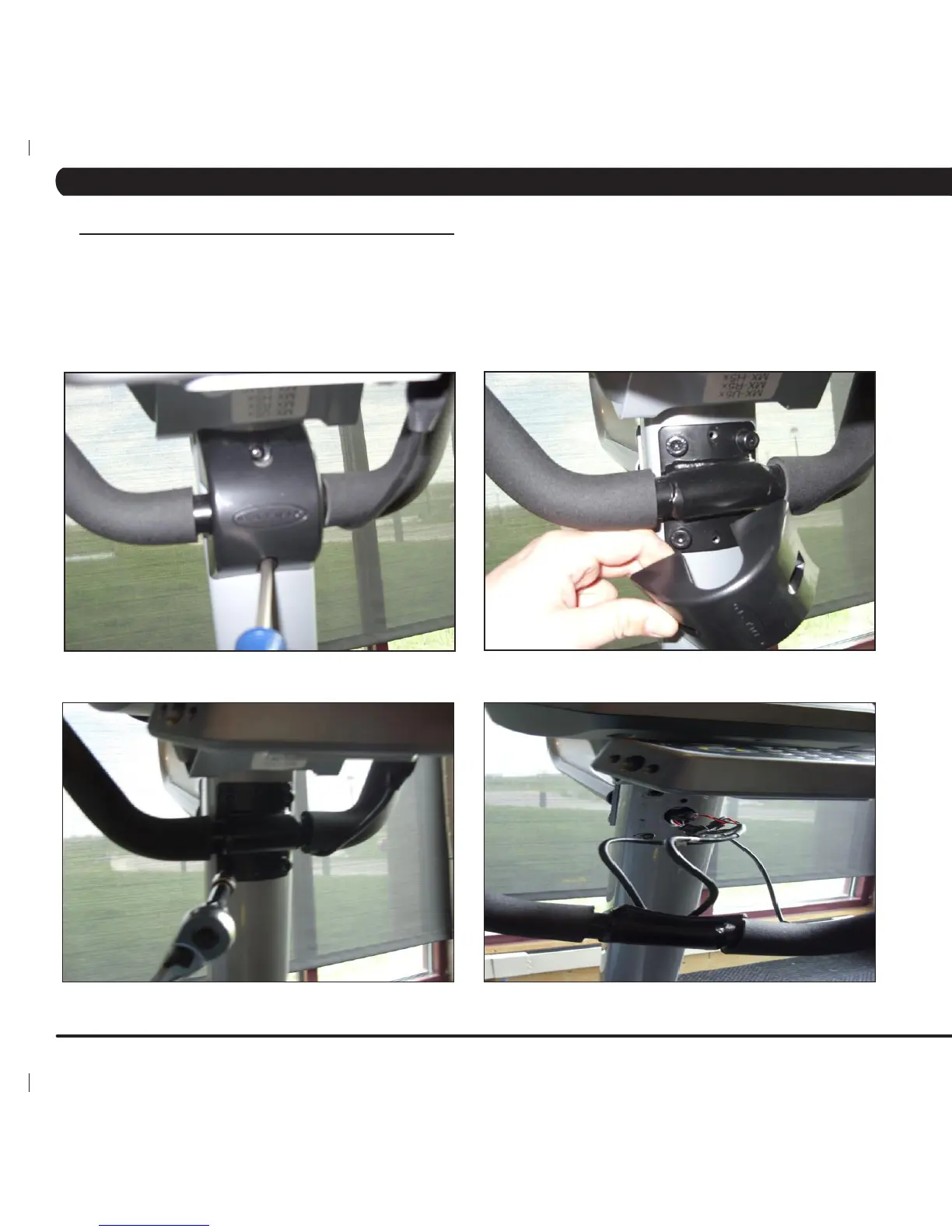

1) Remove the 2 screws holding on the handlebar cover (Figures A & B).
2) Remove the 4 screws holding the heart rate handlebar to the console mast being careful to support the handlebar (Figure C).
3) Carefully pull the wires from the console mast until the connectors are showing, and then disconnect the 3 wires from the handlebar and
remove the defective handlebar (Figure D).
4) Reverse Steps 1-3 to install a new handlebar.
5) Test the bike for function as outlined in Section 8.20.
FIGURE A
FIGURE B
CHAPTER 8: PART REPLACEMENT GUIDE
FIGURE C
FIGURE D
