8.14 GENERATOR BELT REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE
1) Remove the shrouds as outlined in Section 8.11.

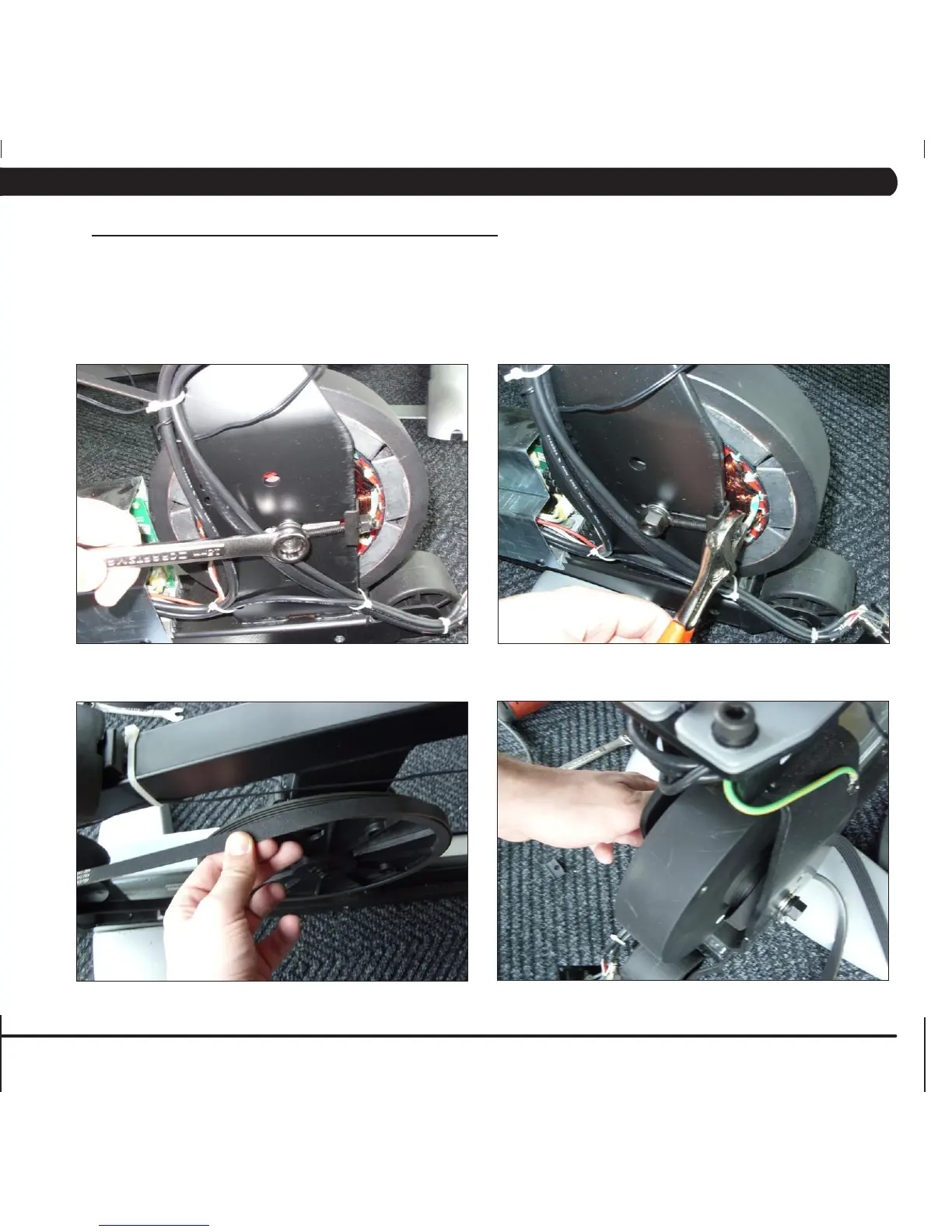

2) Loosen the nuts holding the Generator to the frame (Figure A), and remove the nuts putting tension on the Generator belt (Figure B).
3) Once the tension has been removed, the Generator belt can be walked off of the pulley (Figure C).
4) Pull the Generator out of the frame towards the front of the unit, and remove the Generator belt (Figure D).
5) Reverse Steps 1-4 to install a new Generator belt. NOTE: Be sure to re-tension the new Generator belt to 80 ft / lbs of torque.
6) Test the bike for function as outlined in Section 8.20.
FIGURE A
FIGURE B
FIGURE C
FIGURE D
