CHAPTER 8: PART REPLACEMENT GUIDE
8.6 CONSOLE MAST REMOVAL
1) Remove the console as outlined in Section 8.1.
2) Remove the HR handlebars as outlined in Section 8.2.

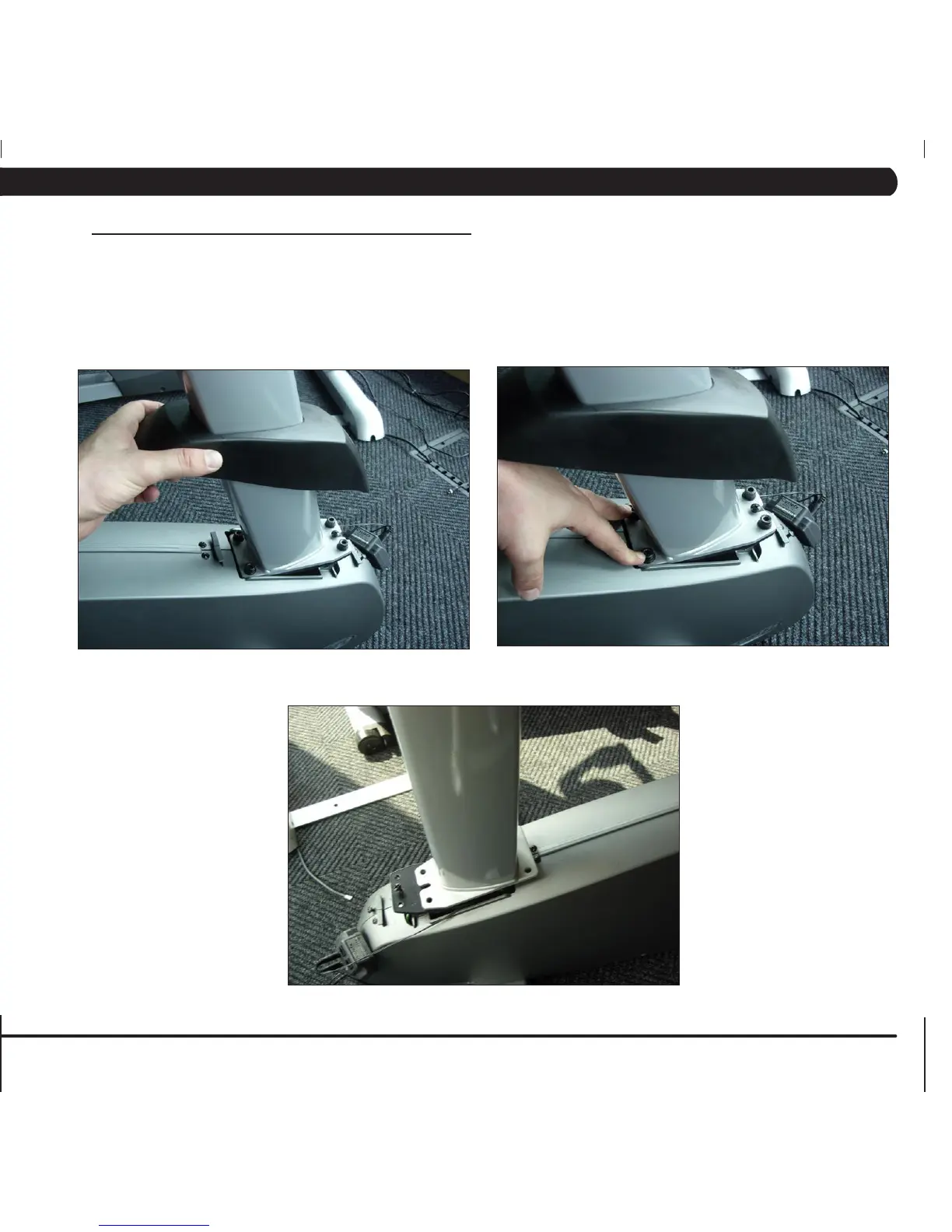

3) Lift up the rubber boot at the bottom of the console mast (Figure A), and remove the 4 screws holding the console mast to the frame (Figure
B).
4) Pull the wires out the bottom of the console mast and remove the mast (Figure C).
5) When installing a new console mast, be sure to pull the console wires up through the new mast prior to installing the 4 screws into the frame.
6) Test the bike for function as outlined in Section 8.20.
FIGURE A
FIGURE B
FIGURE C
