Matrix U3x-01 User Manual

44

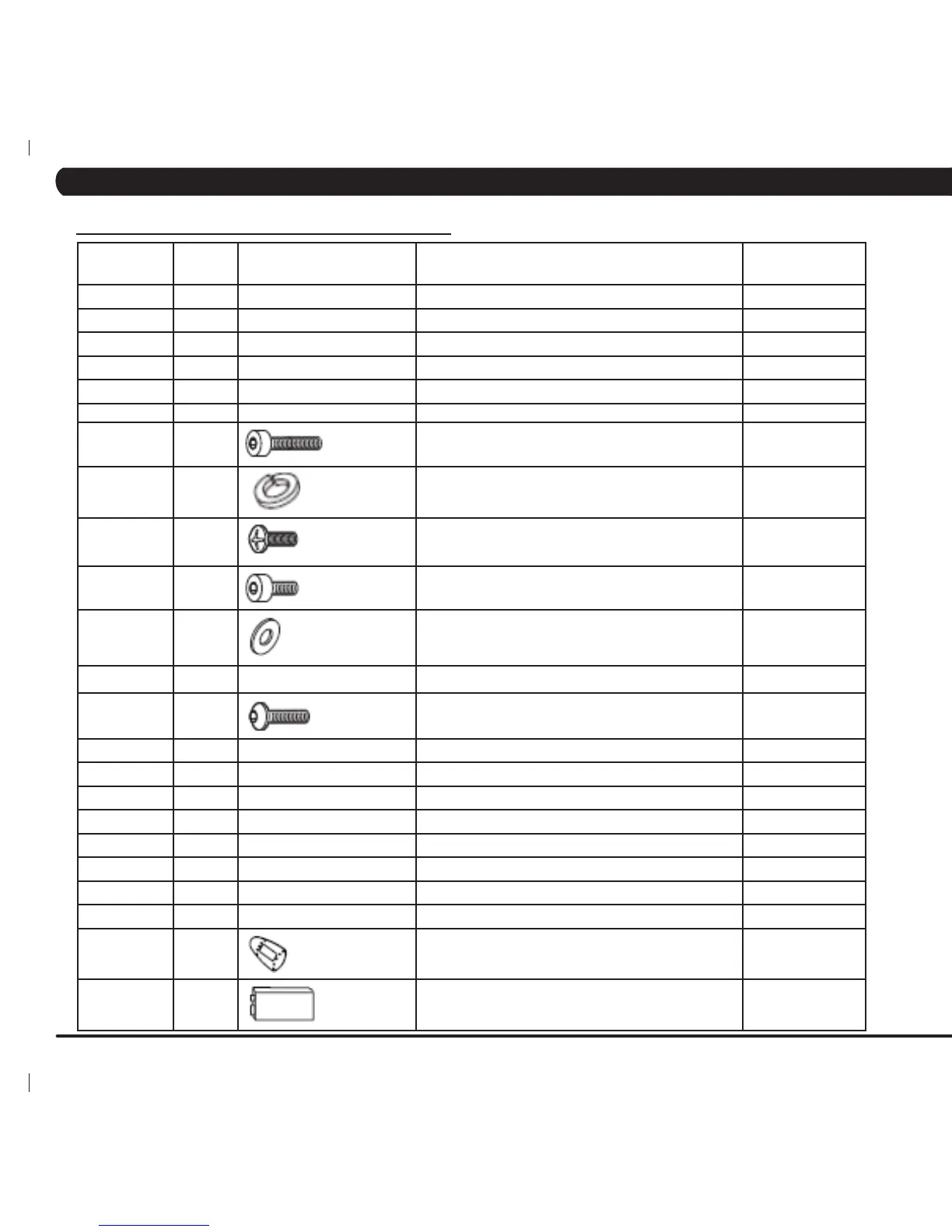

9.2 FASTENERS AND ASSEMBLY TOOLS
CHAPTER 9: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
QUANTITY PART
#
SKETCH DESCRIPTION NOTES
1 4 MM ALLEN WRENCH PURPLE
1 5MM ALLEN WRENCH PURPLE
1 6 MM ALLEN WRENCH PURPLE
1 OPEN END WRENCH (15 & 17MM) PURPLE
1 #2 PHILLIPS SCREWDRIVER PURPLE
4 Z11 HEX HEAD SCREW (M8 X 25L) WHITE
4 Z12 SPRING WASHER WHITE
2 Z13 BUTTON HEAD SCREW (M5 X 10L) WHITE
8 Z21 HEX HEAD SCREW (M8 X 20L) BLACK
8 Z22 FLAT WASHER BLACK
8 Z23 See sketch of part Z12 SPRING WASHER BLACK
4 Z31 BUTTON HEAD SCREW (M8 X 20L) YELLOW
4 Z32 See sketch of part Z12 SPRING WASHER YELLOW
4 Z33 See sketch of part Z22 FLAT WASHER YELLOW
2 Z34 See sketch of part Z11 HEX HEAD SCREW (M8 X 25L) YELLOW
4 Z41 See sketch of part Z31 BUTTON HEAD SCREW (M8 X 20L) RED
4 Z42 See sketch of part Z22 FLAT WASHER RED
4 Z43 See sketch of part Z12 SPRING WASHER RED
4 Z51 See sketch of part Z11 HEX HEAD SCREW (M5 X 12L) GREEN
4 Z52 See sketch of part Z12 SPRING WASHER GREEN
1 C12 CONSOLE FIX PLATE
1 9 VOLT BATTERY INCLUDED IN
PACKAGING
