8.3 HEART RATE GRIPS REPLACEMENT

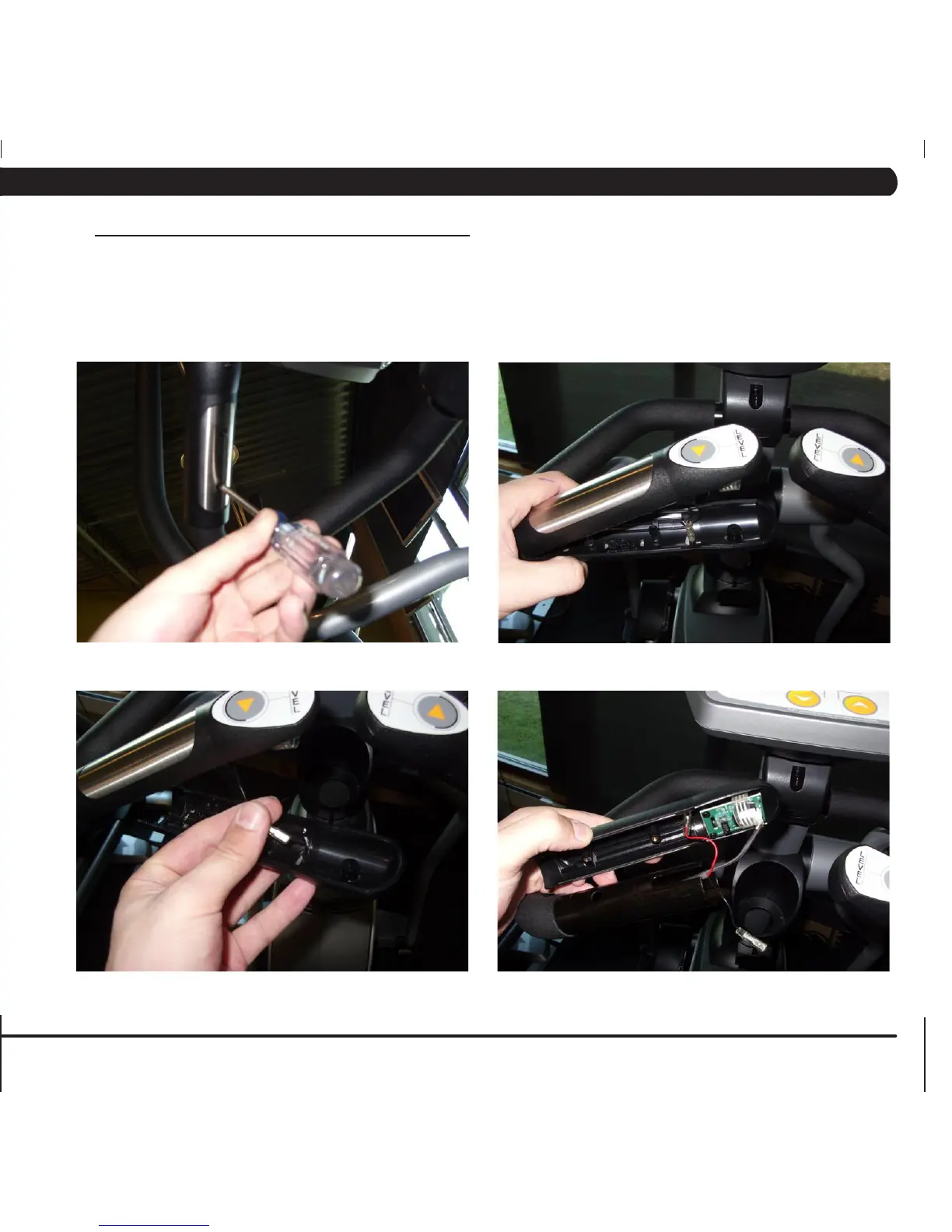

1) Remove the 3 screws holding the HR grip together (Figure A).
2) Pull the 2 halves of the HR grip apart (Figure B).
3) Disconnect the black wire and remove the lower portion of the HR grip (Figure C).
4) Disconnect the red wire and level button and remove the upper portion of the HR grip (Figure D).
5) Reverse Steps 1-4 to install new HR grips.
6) Test the bike for function as outlined in Section 8.20.
FIGURE A FIGURE B
FIGURE C
FIGURE D
