Matrix U3X-05 User Manual

52
9.19 DRIVE AXLE SET REPLACEMENT - CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE

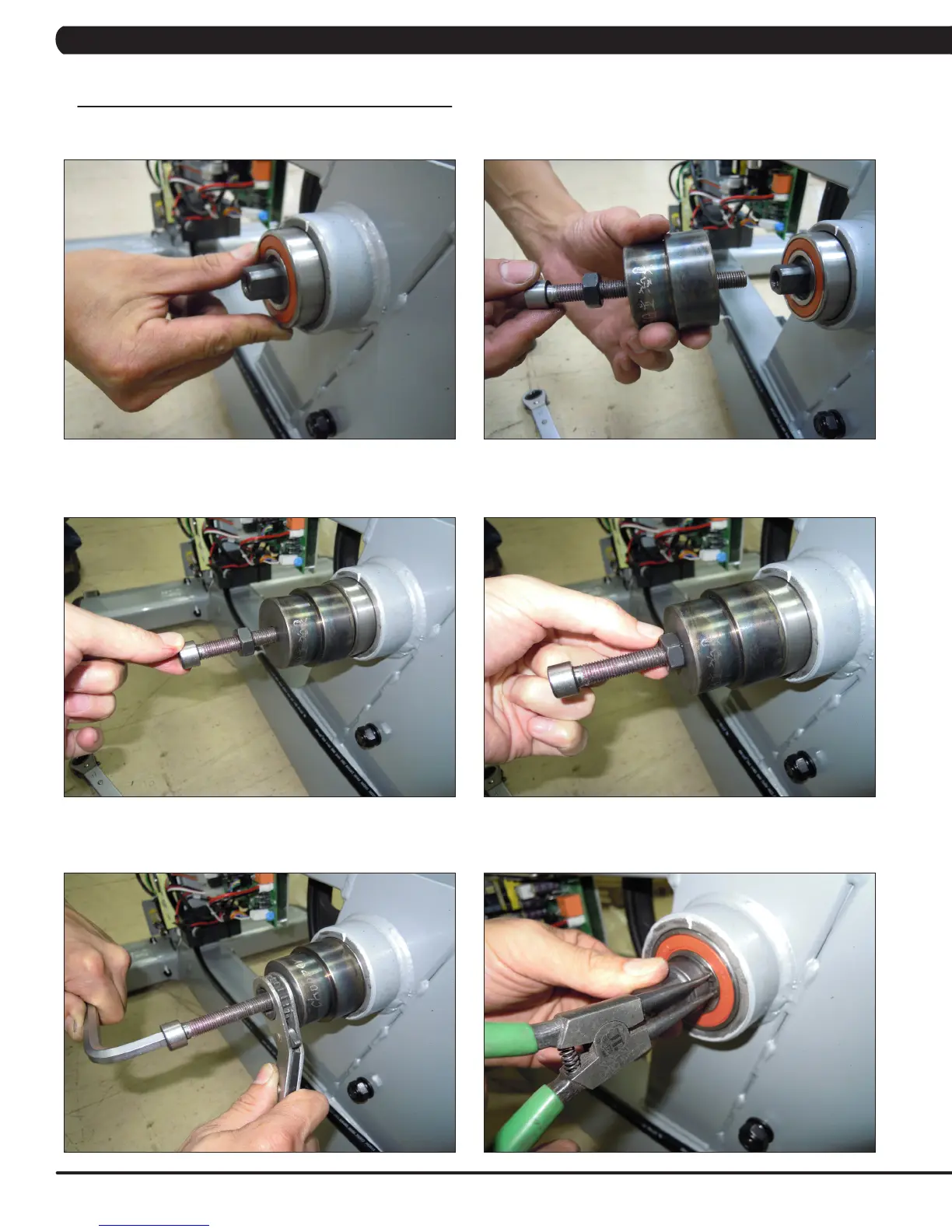

15) Remove the tools, then insert the bearing into the hole in the frame on the left side (Figure M).
16) Again use the M10 x 100L x 1.25P screw with a nut to attach the tool to the drive axle (Figure N).
17) Turn the screw until it is close into the drive axle (Figure O).
18) Then turn the nut until it is close to the cup portion of the tool (Figure P).
19) Use a wrench to hold the screw, then turn the nut to push the bearing into the hole in the frame (Figure Q).
20) Insert the retainer clip to hold the bearing in the frame (Figure R).
FIGURE M FIGURE N
FIGURE PFIGURE O
FIGURE RFIGURE Q
