9.19 DRIVE AXLE SET REPLACEMENT - CONTINUED

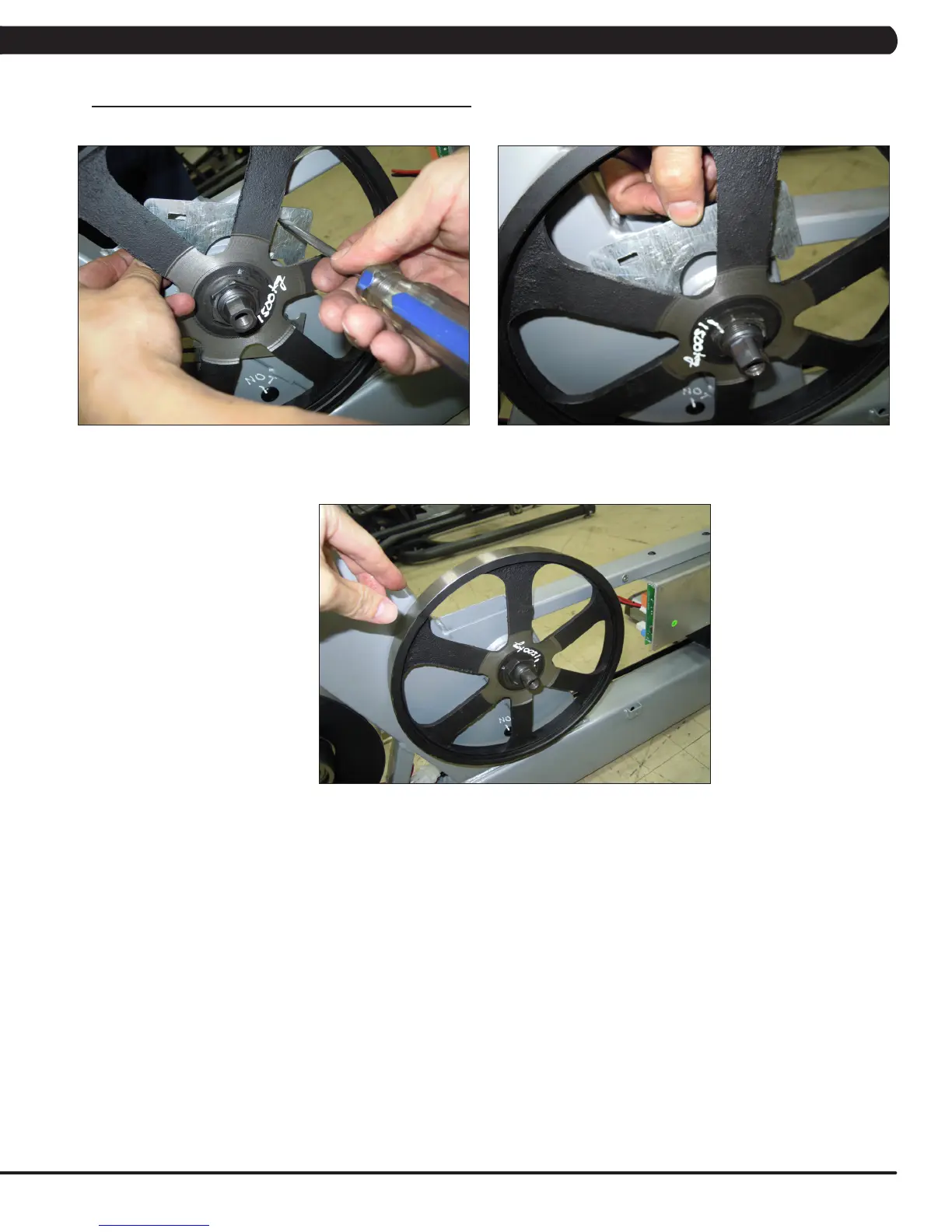

21) Use a screwdriver to remove the iron plate from the drive axle (Figures S & T).
22) Rotate the drive axle to make sure that the motion is smooth and that there is no wobbling to one side (Figures U).
23) Re-install the belts as outlined in Section 9.15.
24) Reverse Steps 1-2 to re-assemble the unit.
25) Test the Bike as outlined in Section 9.20.
FIGURE TFIGURE S
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE U
