Matrix W1X ROWER

40
7.4 ASSEMBLY INSTRUCTIONS  CONTINUED
CHAPTER 7: ROWER SPECIFICATIONS AND ASSEMBLY GUIDE

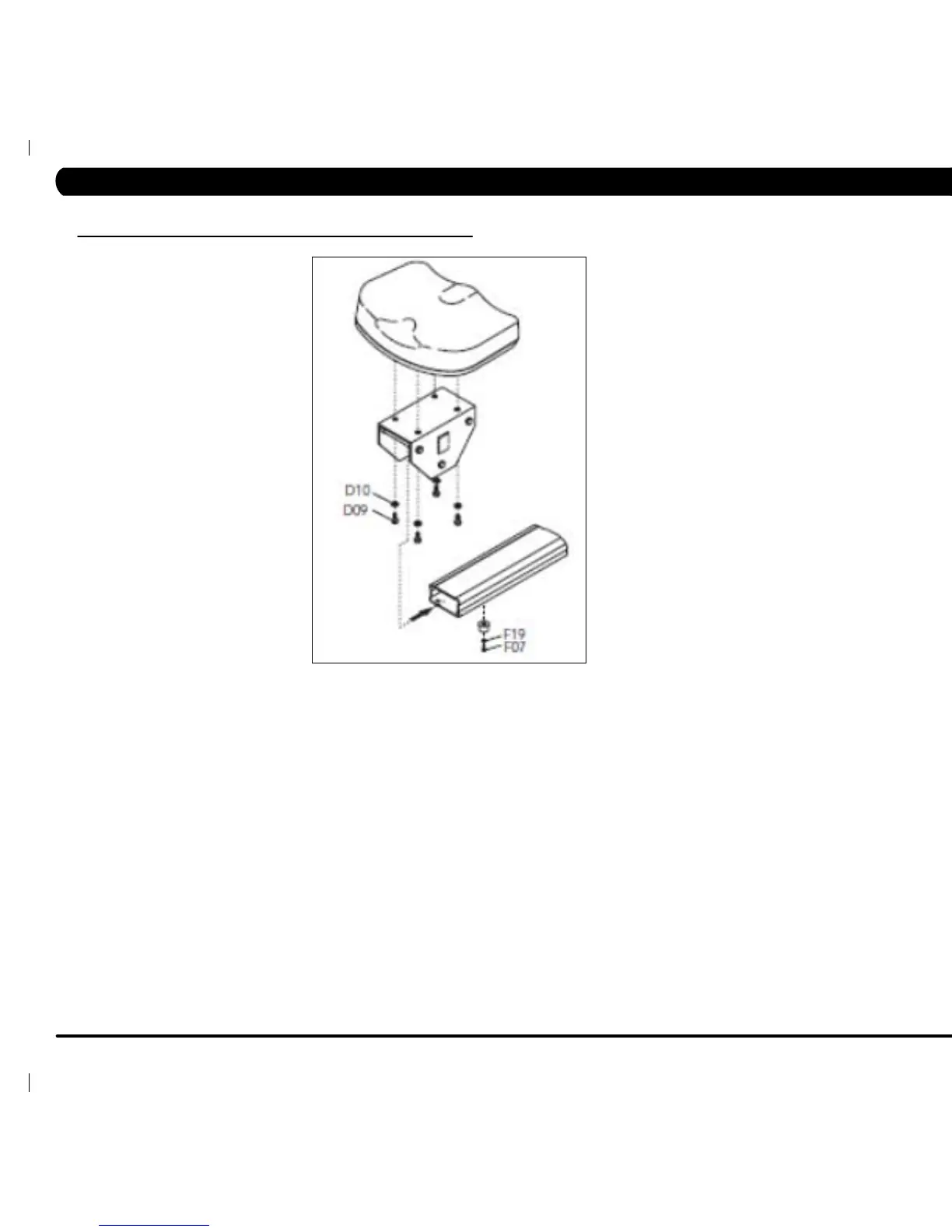

1) Mount the seat to the seat bracket with 4 screws (D09) and washers (D10).
2) Slide the seat assembly onto the aluminum rail.
3) Attach the seat stop bumper to the aluminum rail using the bolt (F07) and washers (F19).
STEP 3
