41
7.4 ASSEMBLY INSTRUCTIONS CONTINUED

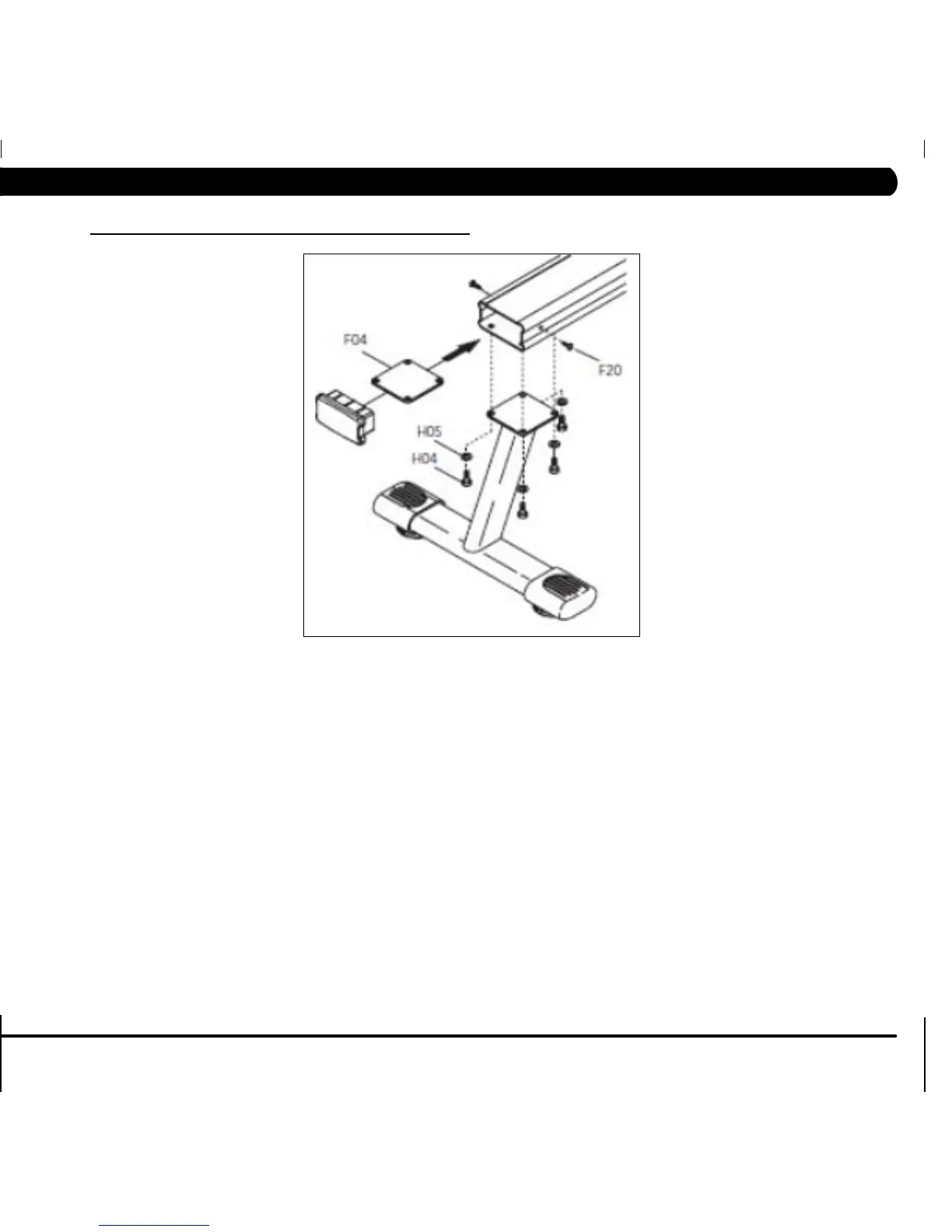

1) Place the rear foot position plate (F04) inside the aluminum rail close to the edge. Attach the rear foot to the aluminum rail and align the four holes of
the aluminum rail with the four holes of the rear foot. Thread the bolts (H04) with spring washers (H05) through the rear foot into the rear foot position
plate and tighten them.
2) Press the seat rail end cap into the aluminum rail, and use two screws (F20) to fix the cap.
STEP 4
CHAPTER 7: ROWER SPECIFICATIONS AND ASSEMBLY GUIDE
