CHAPTER 7: ROWER SPECIFICATIONS AND ASSEMBLY GUIDE
7.4 ASSEMBLY INSTRUCTIONS CONTINUED

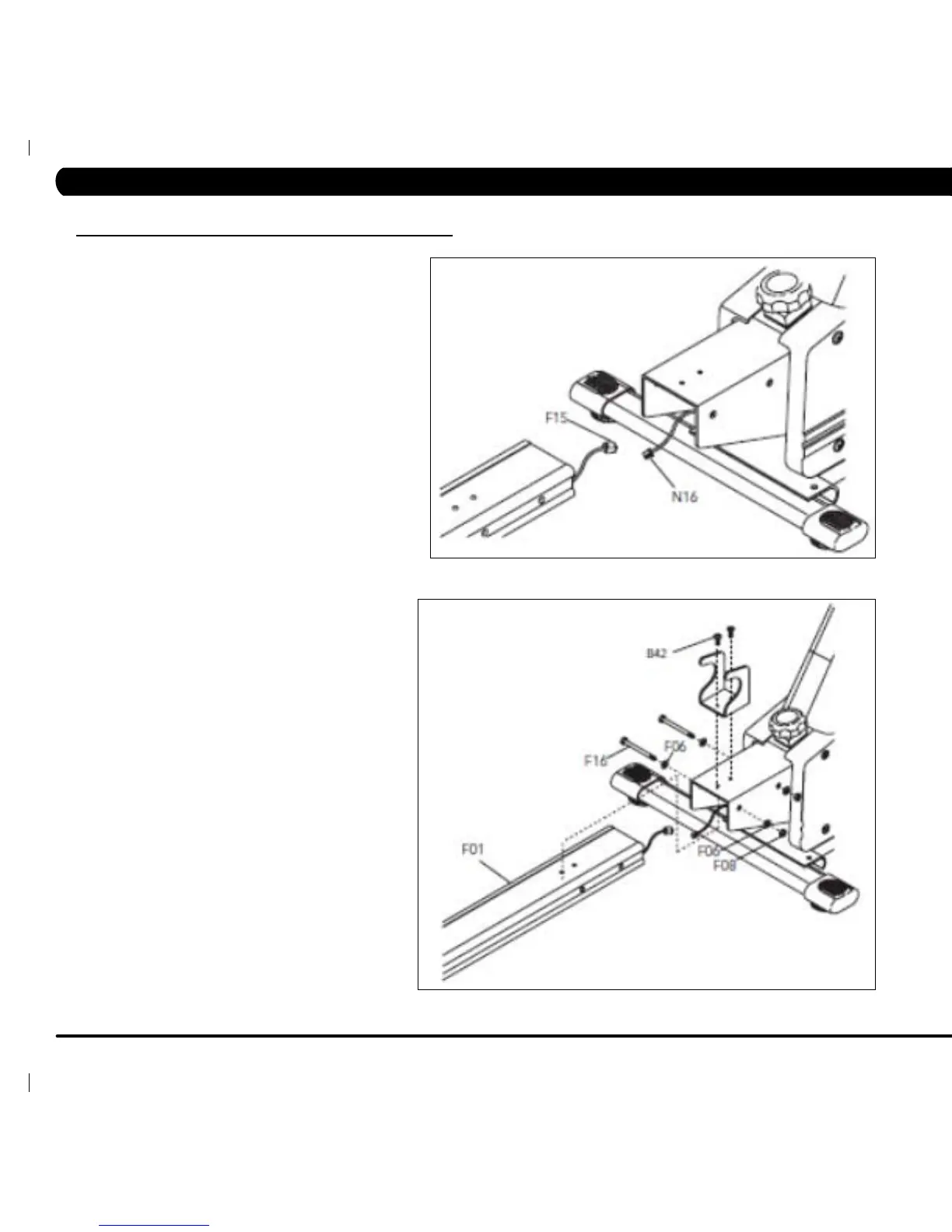

STEP 5
1) Connect the sensor cable from the main frame and the
aluminum rail.
STEP 6
1) Place the aluminum rail into the rail bracket of the main
frame, and tighten them using two bolts (F18), four washers
(F06), and two nuts (F08).
2) Mount the handlebar bracket to the rail bracket using two
bolts (B42).
To Next Page
