3–3
INSTALLATION
www.maxcessintl.com
MI 850A348 1 E

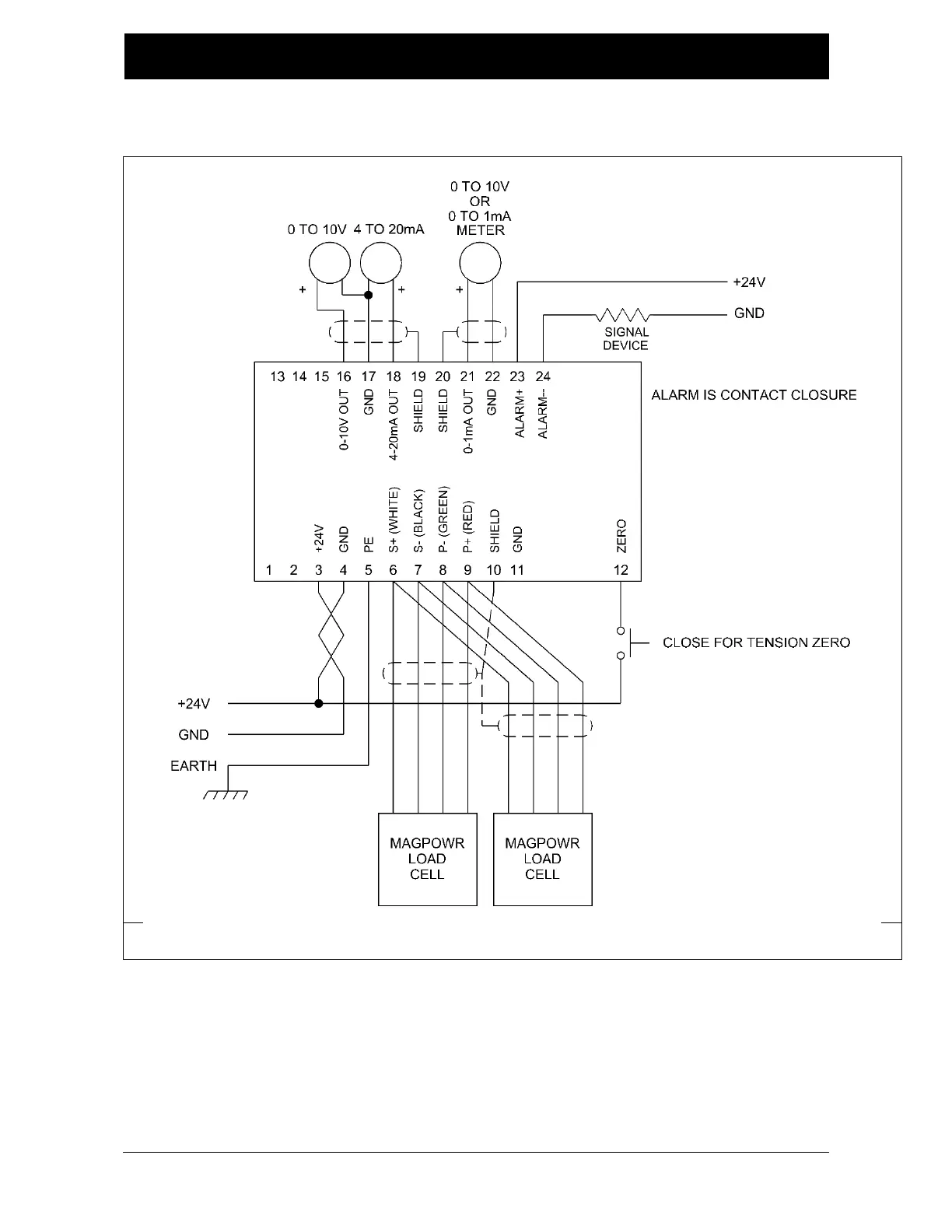

Wiring for the DLCA
Figure 2. Complete DLCA wiring.
