INSTALLATION
www.maxcessintl.com
MAGPOWR DLCA
MI 850A348 1 E
Convert wiring from
an LCA to the DLCA
Table 1 shows how to convert the wiring from an LCA to the
DLCA.
Function
LCA Terminal
DLCA Terminal
+24V
12
3
Gnd
11
4
PE
10
5
0 to1 mA
9
21
4 to 20 mA
8
18
Gnd
7
17
0 to10V
6
16
Shield
5
10, 19, or 20
P+
4
9
P-
3
8
S-
2
7
S+
1
6
Table 1. Convert wiring from an LCA to the DLCA

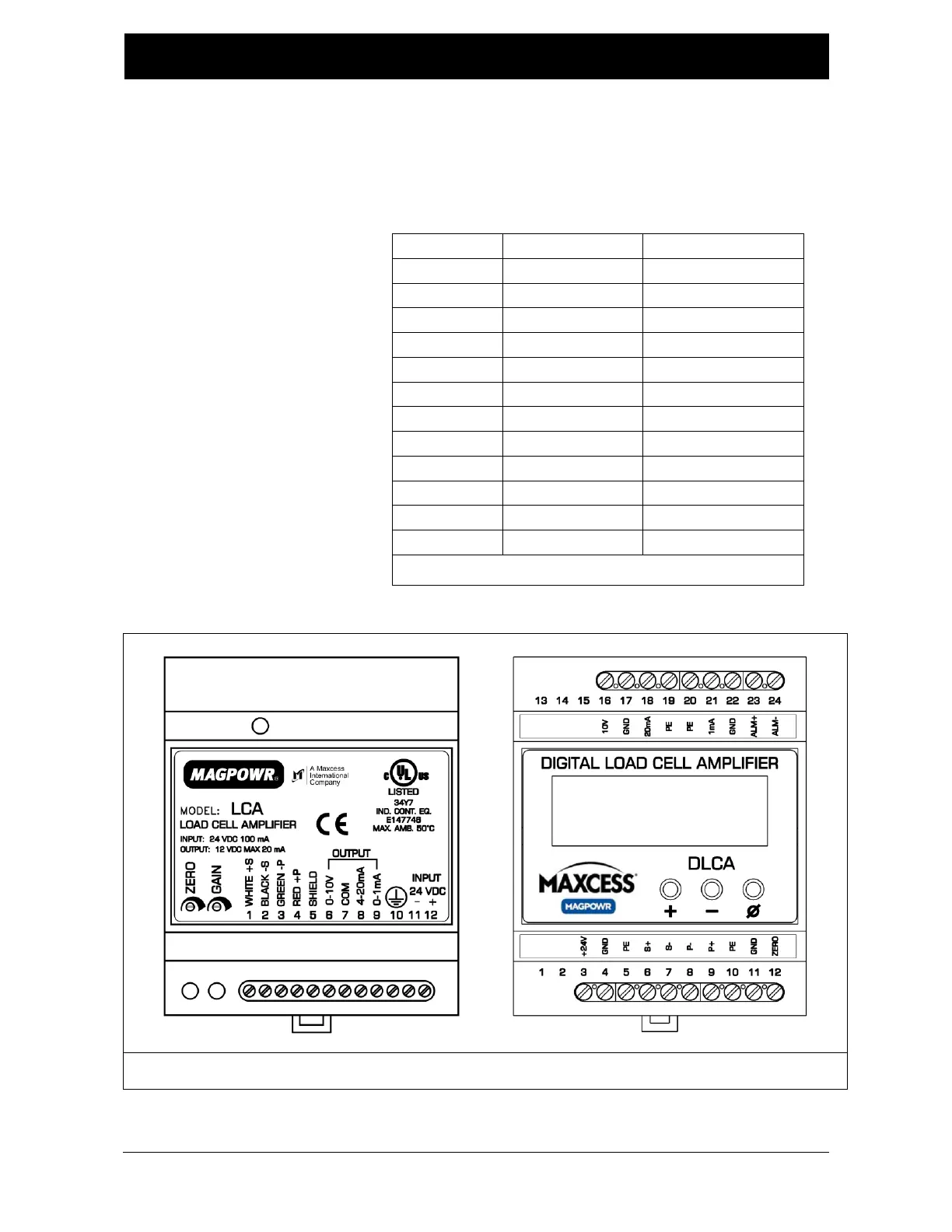

Figure 4. DLCA and LCA pinout
