Maxcess MAGPOWR DLCA - Figure 6. Weightless Calibration Angles

4–9
OPERATION
www.maxcessintl.com
MAGPOWR DLCA
MI 850A348 1 E
Tension calibration
Weightless calibration
continued
Display now shows C2.4. Press [] and enter the combined
load cell rating. Press and hold [] for two seconds (until the
display starts flashing) to store the parameter.
Display will now show C2.5. Press [] and enter the maximum
tension. Press and hold [] for two seconds (until the display
starts flashing) to store the parameter.

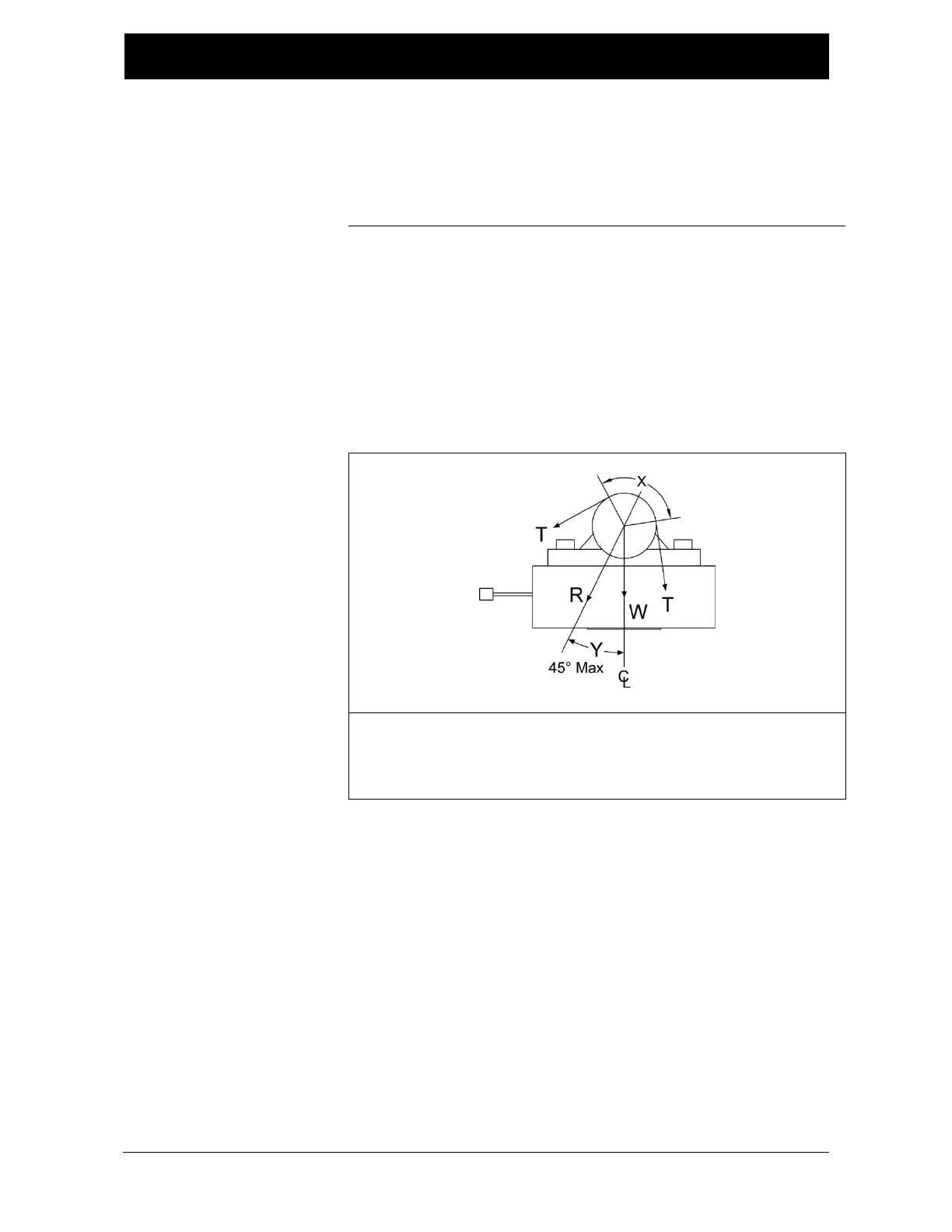

Figure 6. Weightless calibration angles
X = Web wrap angle
Y = Angle from force direction Arrow
Continued
