MAXDATA PRO 7000X - Rear, Underside, and LED Indicators

67

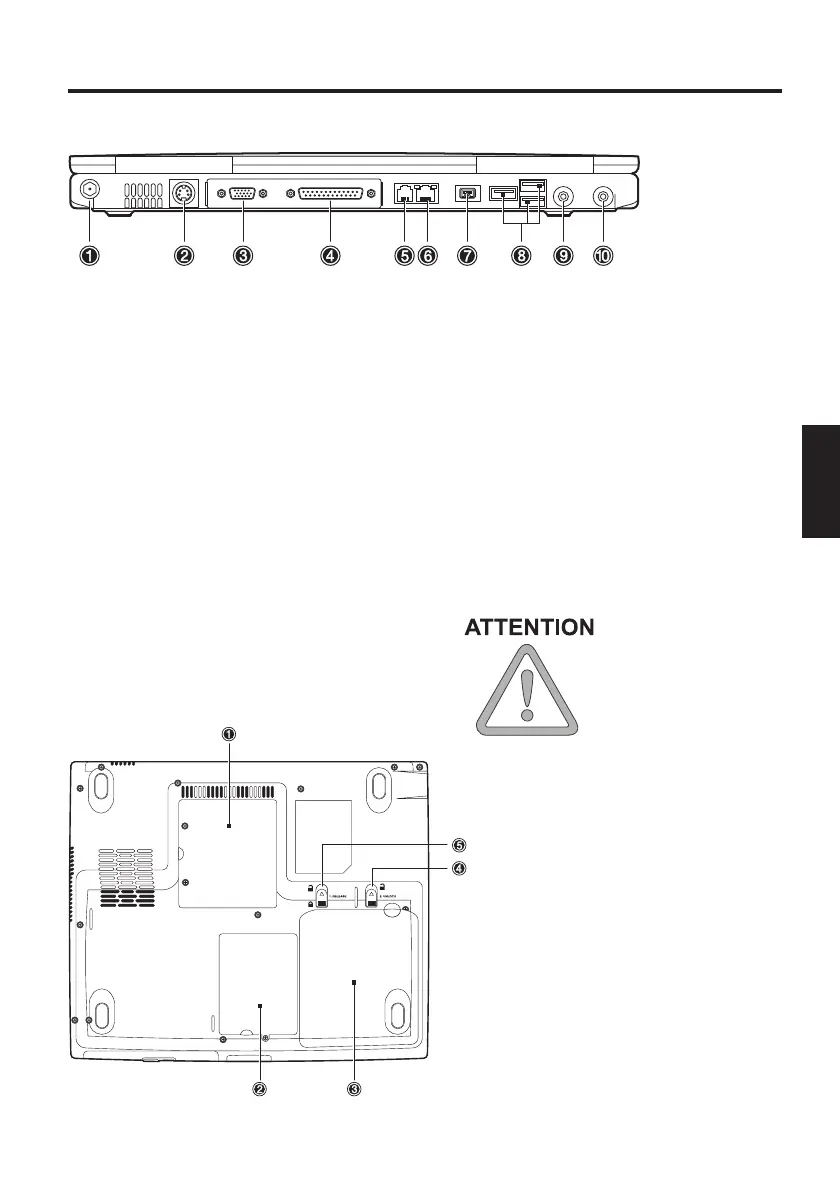

Fig. 8
REAR VIEW
System Overview
(1) Power in socket
(2) S-Video TV output
(3) Connector for external monitor
(4) Printer port
(5) Modem port
(6) Network port
(7) IEEE 1394 port
(8) USB port
(9) Loudspeaker/ headphones socket
supports S/PDIF output
(10) LINE IN / microphone socket
* All air intake and
ventilation openings
must be kept free
from obstructions at
all times. If not, the
device is liable to
overheat.
UNDERSIDE
(1) RAM cover
(2) Hard disk slot
(3) Battery slot
(4) Battery release (spring-
loaded)
(5) Battery release (with
lock)
Fig. 9
