EPOS4 EtherCAT Card Hardware Reference
4-18 CCMC | 2019-11 | rel8613
4.1 Schematic Overview

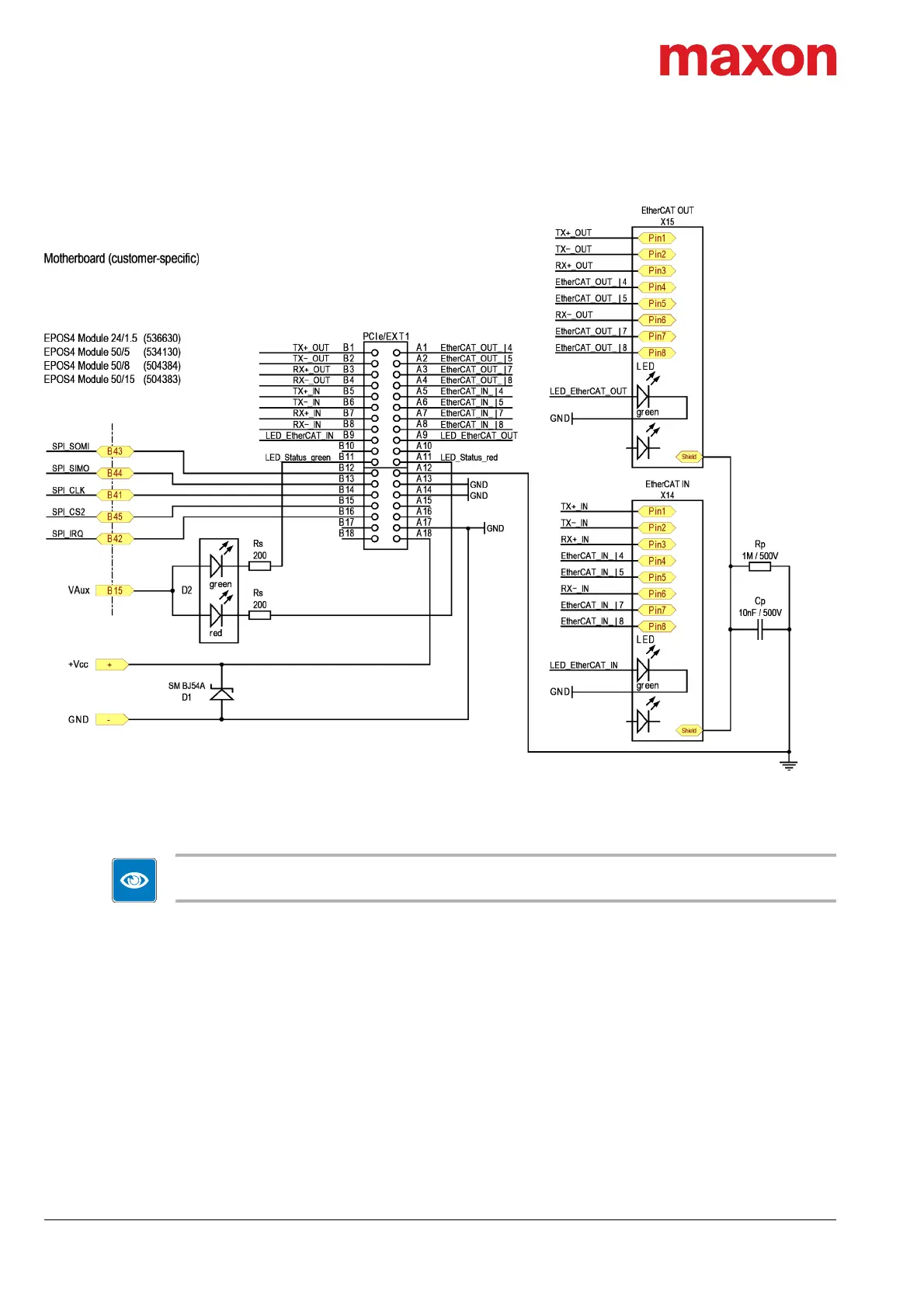

Figure 4-7 Schematic overview
4.2 Requirements for Components of Third-party Suppliers
Best practice
For references and recommended components consult  Table 4-14.
4.2.1 Card Edge Connector & Socket Headers
For implementation of the «EPOS4 EtherCAT Card», a PCIe 2x18 position connector is required.
EPOS4 modules are available with two different types of socket headers.
• EPOS4 Module 24/1.5 (536630) and EPOS4 Module 50/5 (534130) feature 1.27 mm box head-
ers.
• EPOS4 Module 50/8 (504384) and EPOS4 Module 50/15 (504383) have pin headers that permit
two ways of mounting. They can either be plugged in a socket header or be directly soldered to a
printed circuit board.
Find further details on the hardware in the separate document «Hardware Reference» of th e respective
EPOS4 Module.
