MAXPhotonics MFSC User Manual

21
Chapter 4 Specication
5-Installation Environment Requirements
1.The ambient air cleanliness grade requirement for optical fiber output head
installation: 1000 or more stringent grade. Suggestions for Configuration of
Standard Purication Workbench;
2.laser working environment temperature:10°C–40°C;
3.laser working environment humidity:10%-85%;
4.Avoid the condensation environment,the specific control standards are as
follows:
NOTE:
◎
Water pipe color: blue input water, red return water.

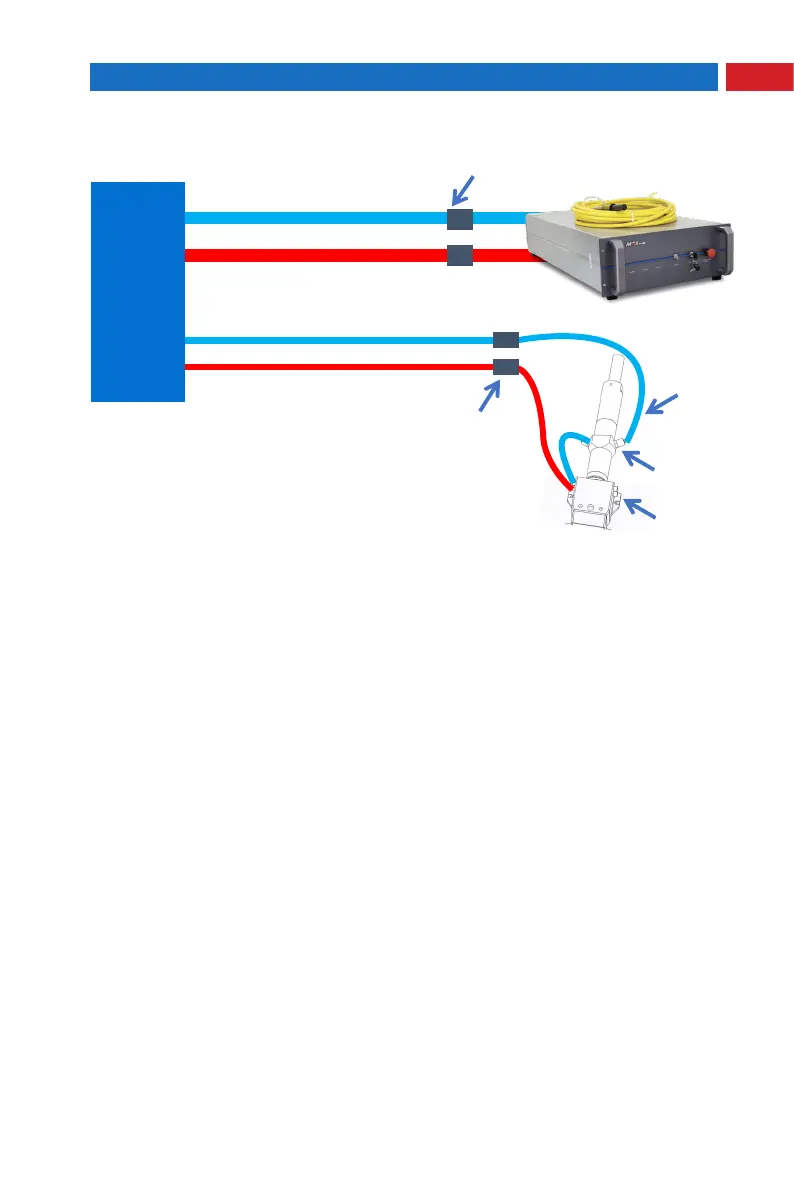

Total length
<1m
DN25 (1 inch tube), length ≤ 2m
Inner diameter ≥ 8mm, length ≤ 20m
QBH
Cutting
head
Adapters
Adapters
water
cooling
machine
Low temperature water circuit
High temperature water circuit
(external light path)
3/4 inch
3/4 inch
Inner diameter 4mm
Inner diameter
4mm

MAXPhotonics MFSC Specifications

General

Brand	MAXPhotonics
Model	MFSC
Category	Control Unit
Language	English
