MAXTEK 67531 - Wiring for Specific Functions; Parking Wire Connection; Reverse Wire Connection; Professional Installation Advice

5
After Sales Support
UK/N.IRELAND HELPLINE N
O
:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Installation

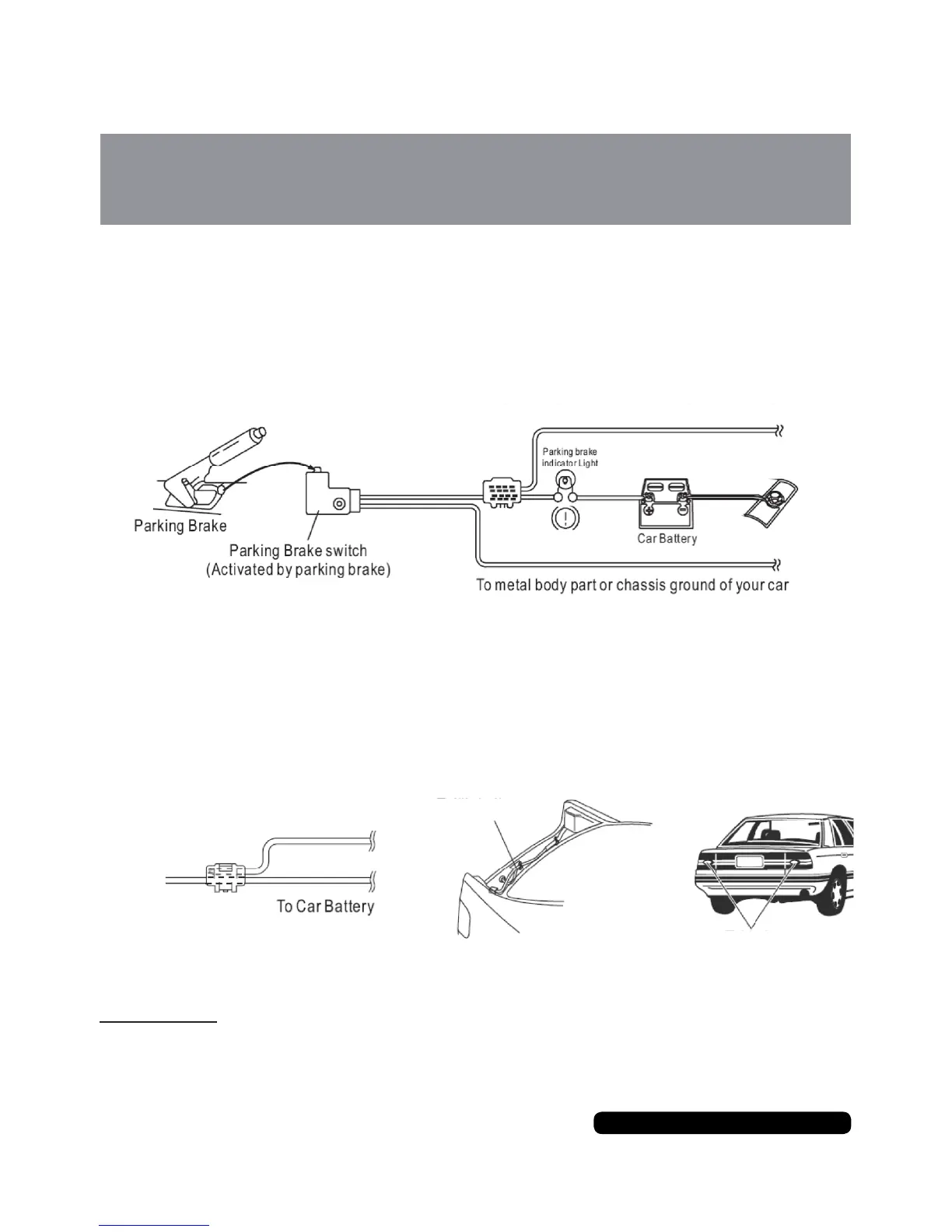

Parking wire from player (Green)
Reverse Light
Reverse Light
Reverse wire from player (Purple/White)
Reverse
Light
Parking Wire (Green)
Once connected correctly you will be able to view video media on the screen when the parking brake has
been engaged and the vehicle has power.
WARNING!
Disconnect the negative terminal from the battery before starting installation.
Consult the vehicle owner’s manual for detailed instructions.
Reverse Wire (Purple/White)
Once connected correctly you will be able to view the connected reversing camera when the reverse gear is
engaged. Refer to the manufactures installation guide of the camera for details.
Please Note:
If you are unsure about any part of installing this unit please get it tted by a
qualied automotive technician.
