Assembly

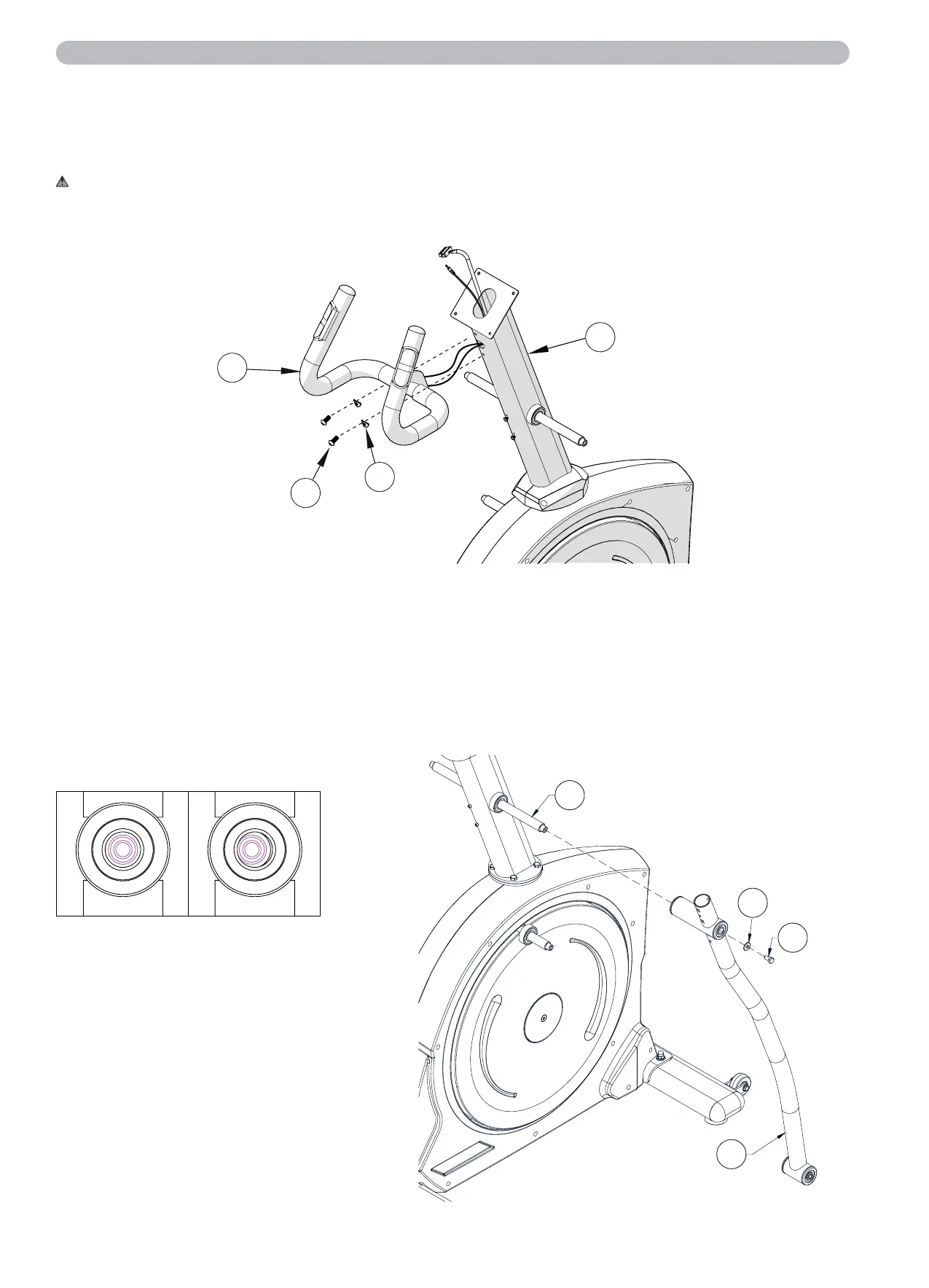

Step 5: Assembling the Fixed Handlebar
Feed the cable that protrudes from the fixed handlebar (A16) through the opening on the front of the handlebar
stem (A02) and out of the top of the handlebar stem.
Then fasten the fixed handlebar (A16) with two allen screws M8x18 (12) and two curved washers M8x20x1.5 (6)
on the front of the handlebar stem (A02).
CAUTION:
When mounting the fixed handlebar, make absolutely sure that you do not pinch or damage
the cables.
A16
12
6
A02
A02
A04
B33
B32
Figure 1
Correct
Incorrect
Step 6: Assembling the Swing Arms
Place the right swing arm (A04) on the right axle of the handlebar stem (A02).
Fix the swing arm (A04) with a hexagon screw M8x16 (4) and a washer 5/16 "x20x2,0 (2).
When inserting the washer (2), make sure that it is centred on the axle - see figure 1.
Note:
To optimize the running properties of the swing arms, it is strongly recommended to lubricate the two transverse
axles of the handlebar stem with a high-quality multi-purpose grease before mounting the swing arms.This will
help reduce friction and ensure smooth operation.
