Maxxus CX 5.1 User Manual

Assembly
9

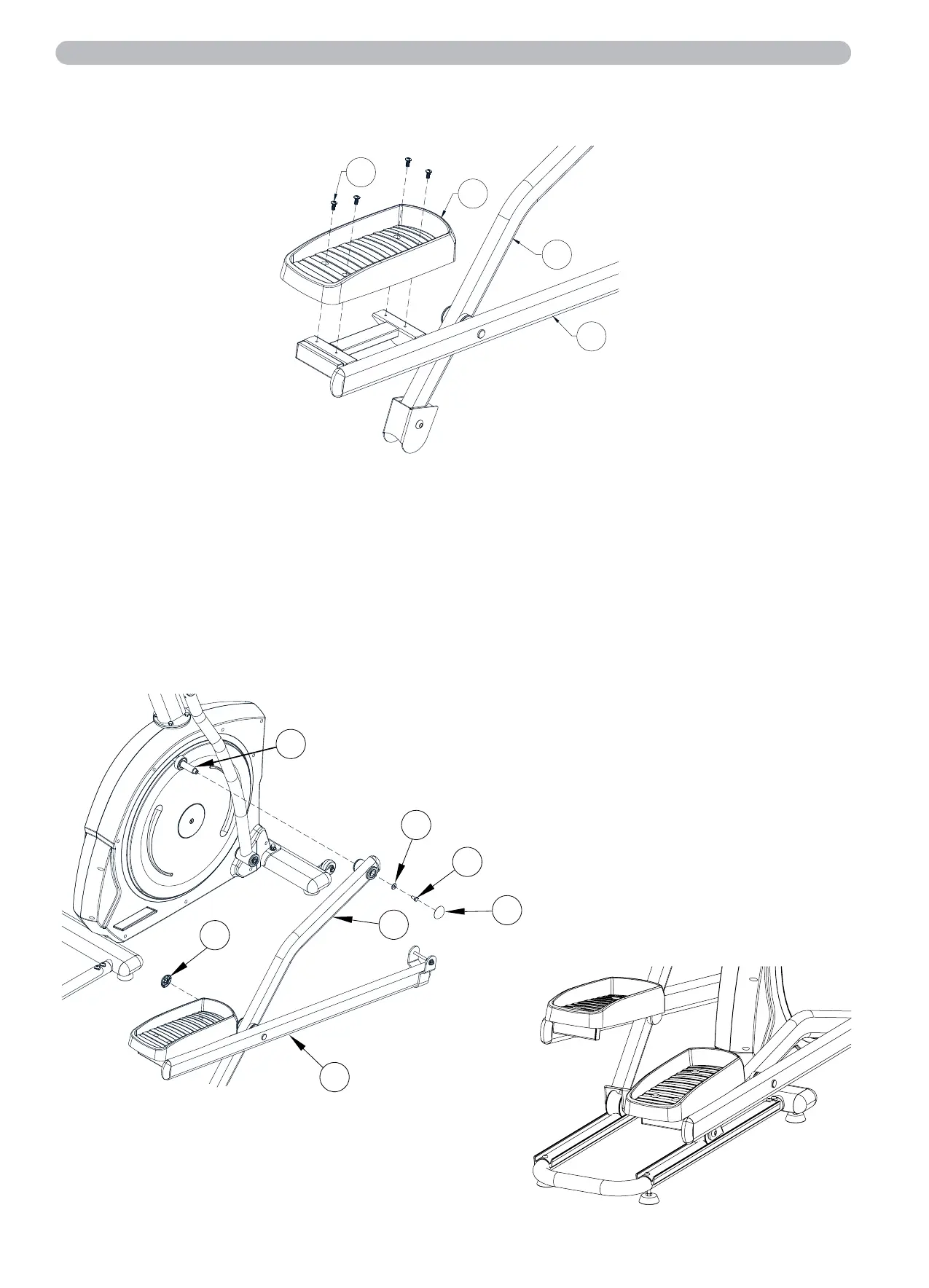

Step 7: Assembling the Pedals
Loosen and remove four allen screws (B23) on the mounting of the right pedal tube (A06).
Attach the pedal (C12) to the right pedal tube (A06) using the allen screws (B23) that were previously loosened.
Step 8: Assembling the Guide Tube
Slide the front mount of the right guide tube (A08) onto the small axle (A11) located on the right drive pulley of
the main frame.
Insert the sliding roller on the right rails of the slide frame.
Note:
To optimize the running characteristics of the pedal tubes, it is recommended to lubricate the axle (A11) of
the drive pulleys with a multi-purpose grease before mounting the pedal tube.
Attach the right guide tube (A08) to the axle (A11) using a hexagon screw M8x16 (4) and a
washer 5/16 "x20x2.0 (2).
Place a round screw cover (C11) on the screw head of the hexagon screw (4).
A11
2
4
C11
A08
A08
C11
B23
C12
A08
A06
9
