Maxxus Multipress 9.1 - Step 10: Squat Bar and Guide Bar Assembly

Assembly - Multipress
Step 10
13
18
20
18
19
19
22
08
08
08
08
21
Note:
First, it requires two people work
together when install this step. Put
spare part on a flat floor.
Second,pay attention to the linear
bearings inside when assembling
Squat guide bar（No.19）and Squat
bar assembly（No.22）.
Third，pay attention to the direction
of the close-up accessories .Do not
install reverse.

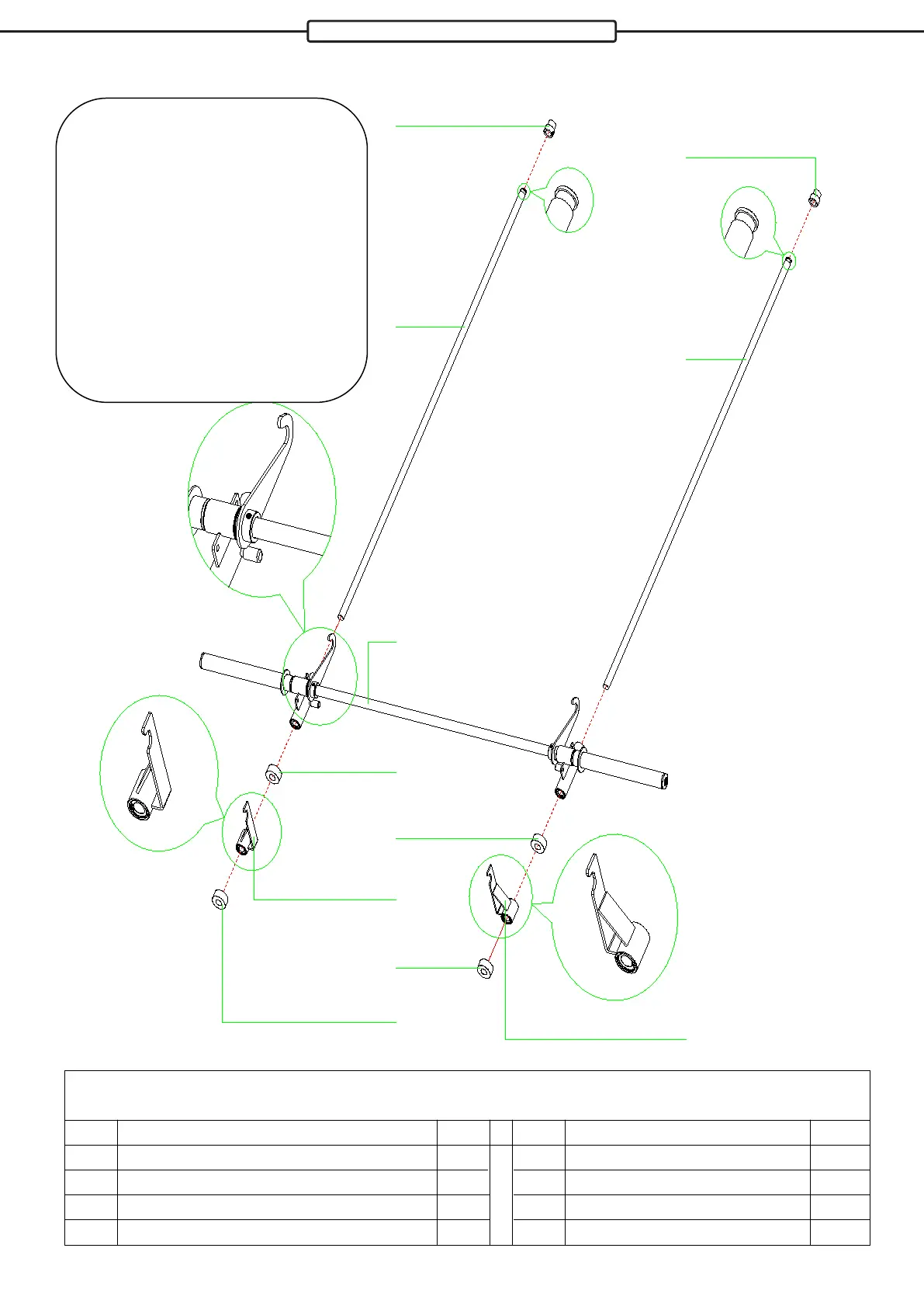

Spare parts of installation step
No. Product name Qty. No. Product name Qty.
08 Shock-absorbing pad 4 21 Safety support assembly-R 1
18 Squat guide bar fixed T sleeve assembly 2 22 Squat bar assembly 1
19 Squat guide bar 2
20 Safety support assembly-L 1
