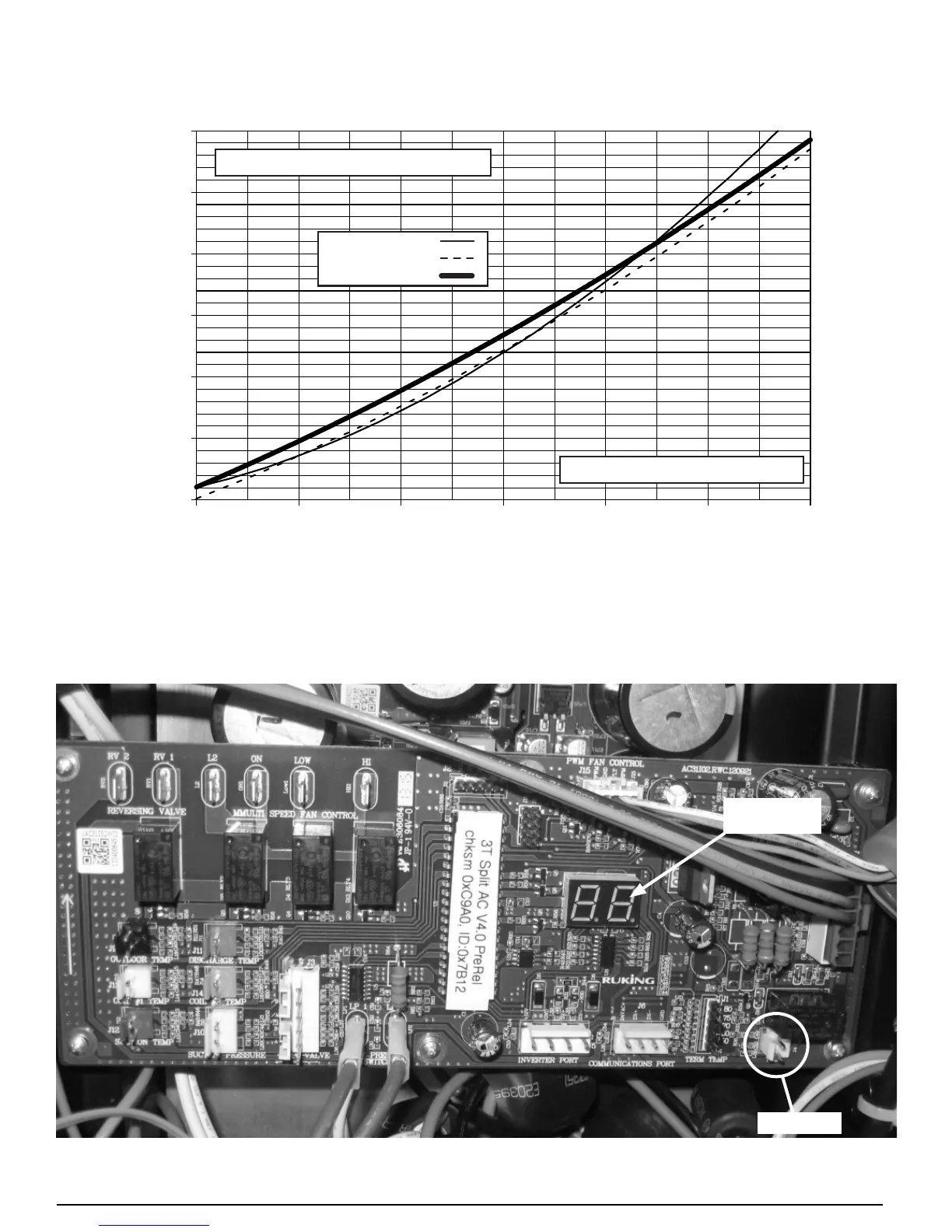

Figure 6. Charging Chart
200
250
300
350
400
450
500
60 70 80 90 100110 120
Cooling Charging Chart
(Outdoor Temperature above 60 ° F)
Remove refrigerant if above curve
Add refrigerant if below curve
Liquid Line Temperature (° F)
Liquid Line Pressure (psig)
3 & 4 TON MODELS
2 TON MODELS
5 TON MODELS
Figure 7. Interface Board in Control Panel
Test Pins
2-Character
Display
