Supreme M3 Assembly

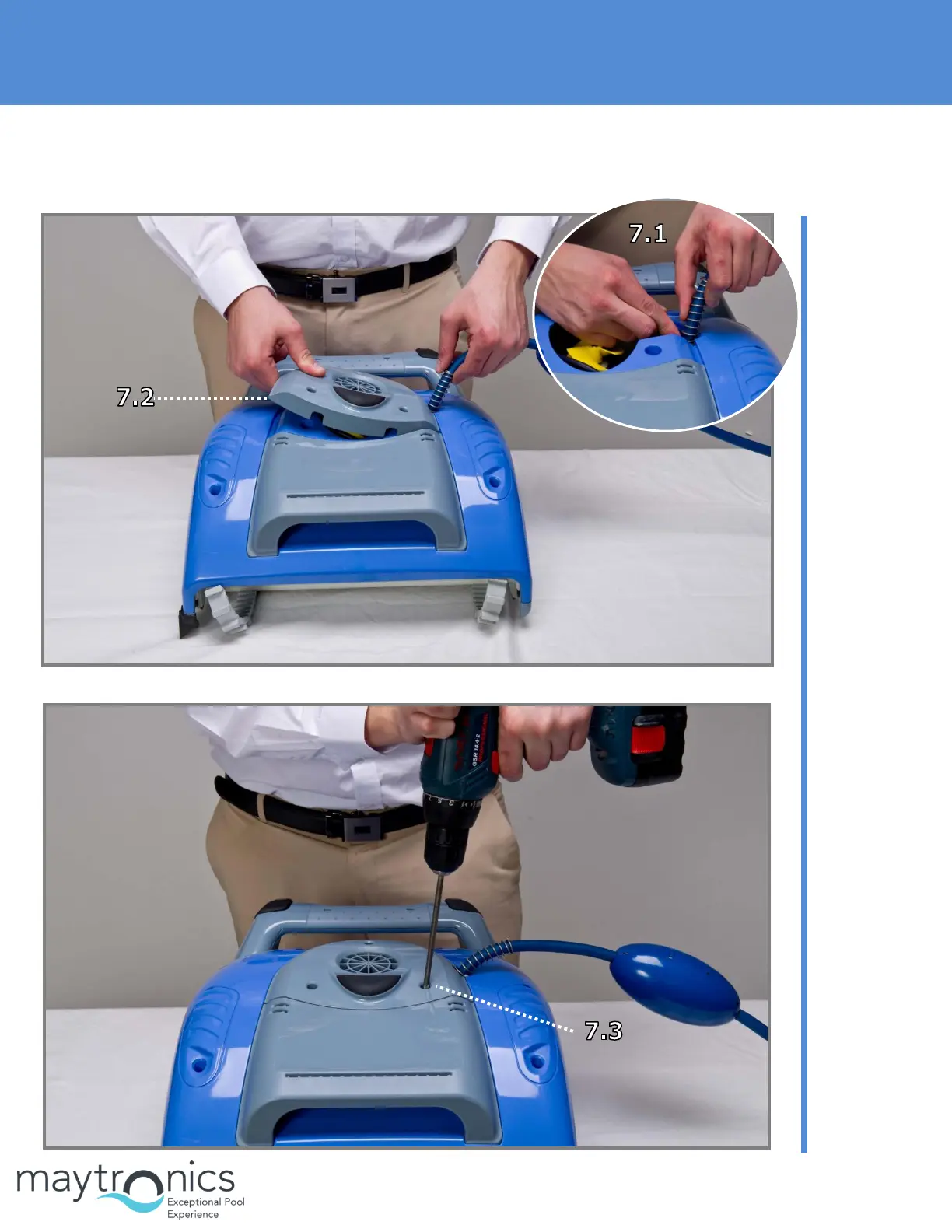

7. Assembling the Impeller Cover
Step 7.1
Place the
cable spring
in its place
on the outer
casing before
closing the
impeller
cover.
Step 7.2
Position the
impeller
cover
diagonally on
the outer
casing as
shown.
Step 7.3
Secure the
impeller
cover with a
KA50X12
screw.
