Supreme M3 Disassembly Instructions

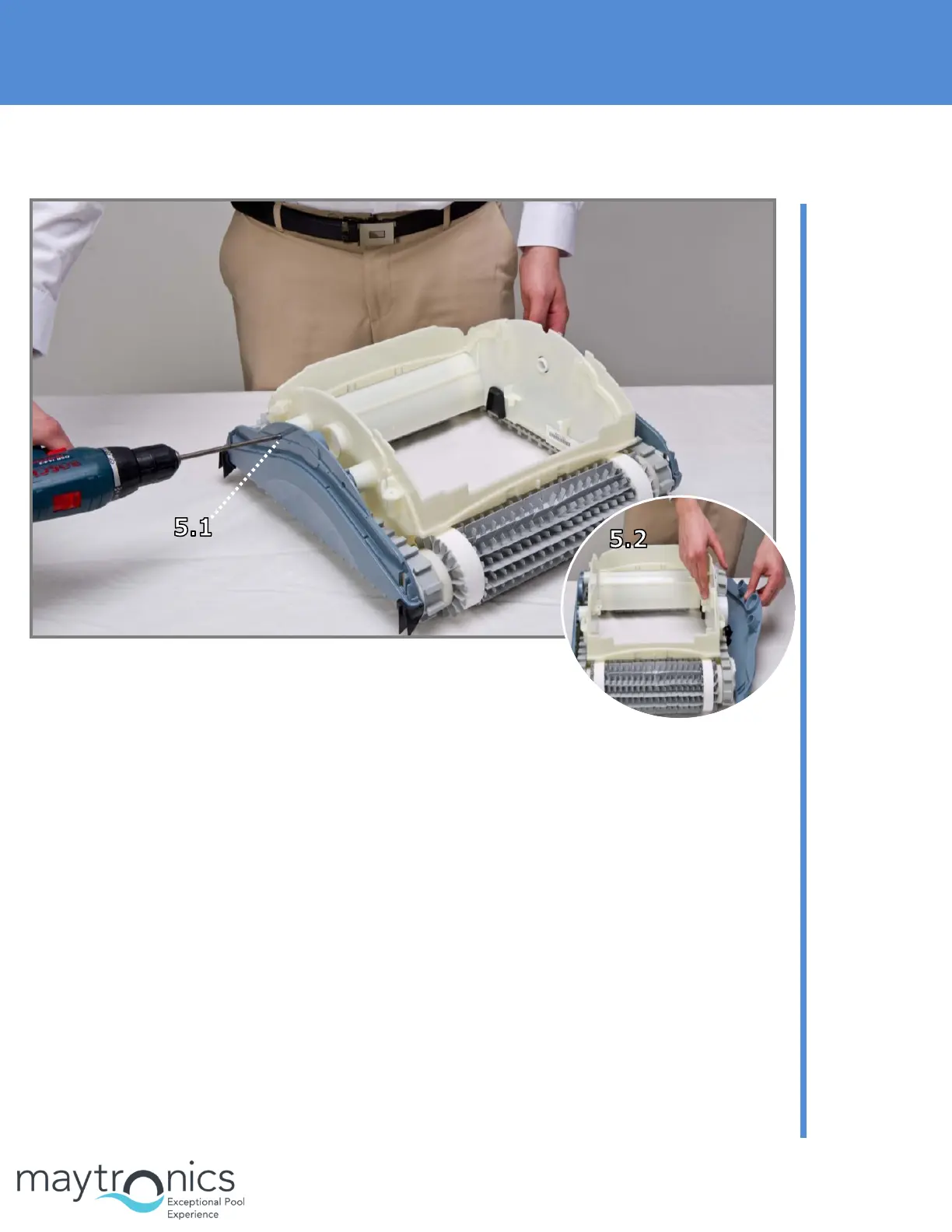

5. Dismantling the Side Panels
Step 5.1
Unscrew the 2
screws holding
the side panel
in place on
both sides of
the robot.
Step 5.2
Pull the side
panels off.
