Supreme M3 Assembly

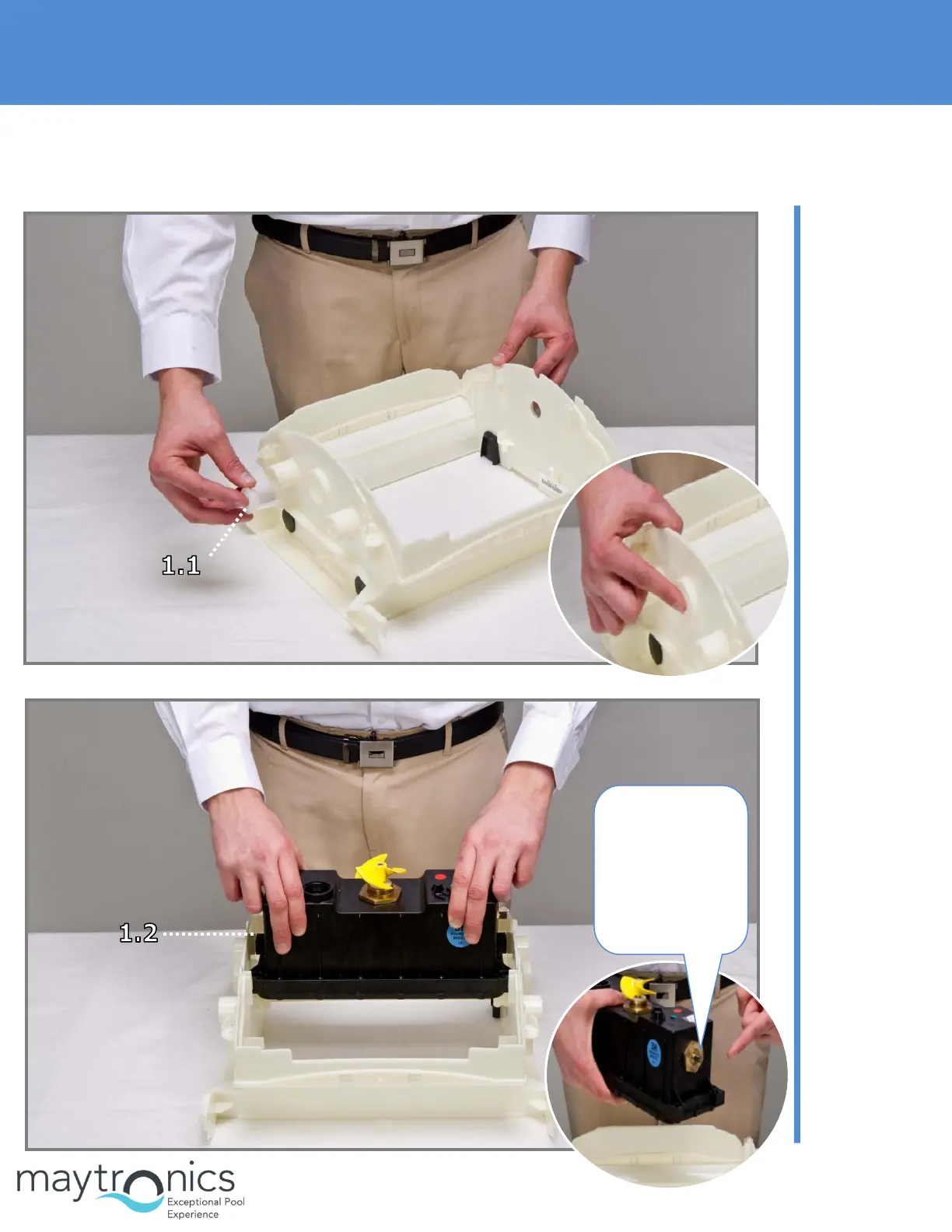

1. Assembling the Motor Unit
Step 1.1
Assemble the
cover cork into
the Pulley's
place.
Step 1.2
Place the motor
unit in its place.
Note:
The drive
motor side
should be in
the opposite
side of the
cover cork.
