Supreme M3 Assembly
2. Assembling the Driving System and Side
Cover

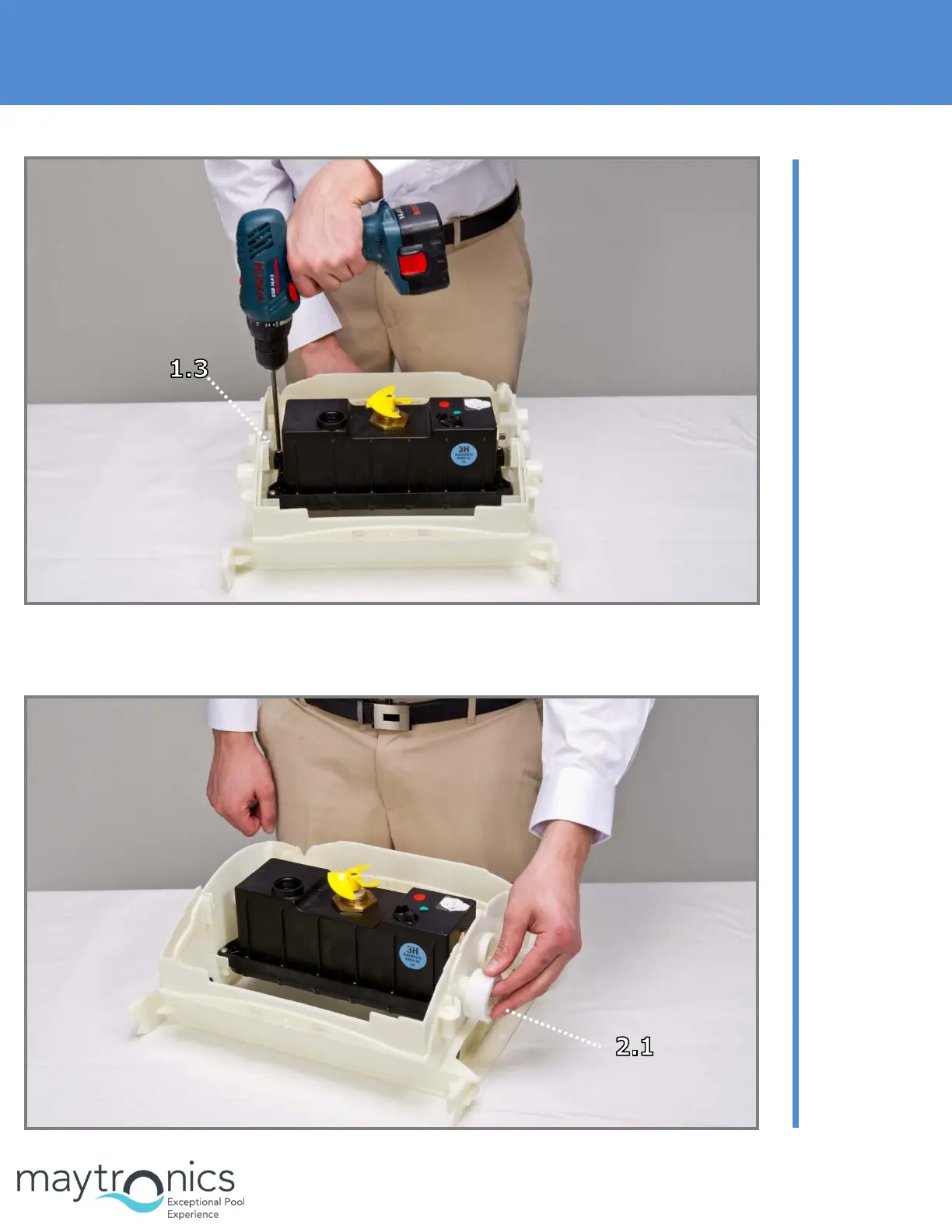

Step 1.3
Secure the
motor unit to
the frame with
4X KA50X30.
Step 2.1
Place the guide
wheels on the
side of the
motor shaft.
