Supreme M3 Disassembly Instructions

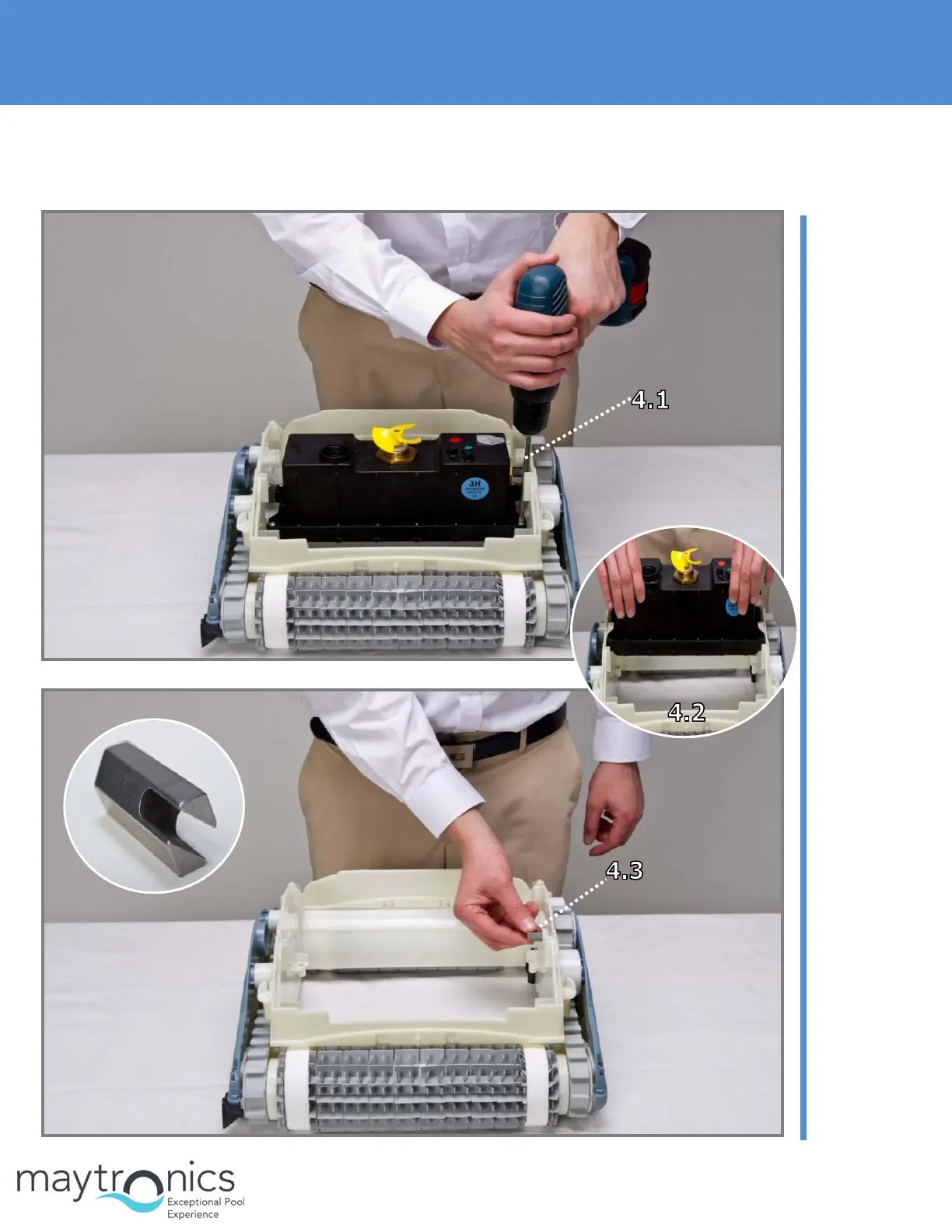

4. Dismantling the Motor Unit
Step 4.1
Unscrew the
4 screws
holding the
motor unit in
place.
Step 4.2
Remove the
motor unit.
Step 4.3
Remove the
hexagon
adaptor.
