Supreme M4 Assembly Instructions
Page 16 of 18

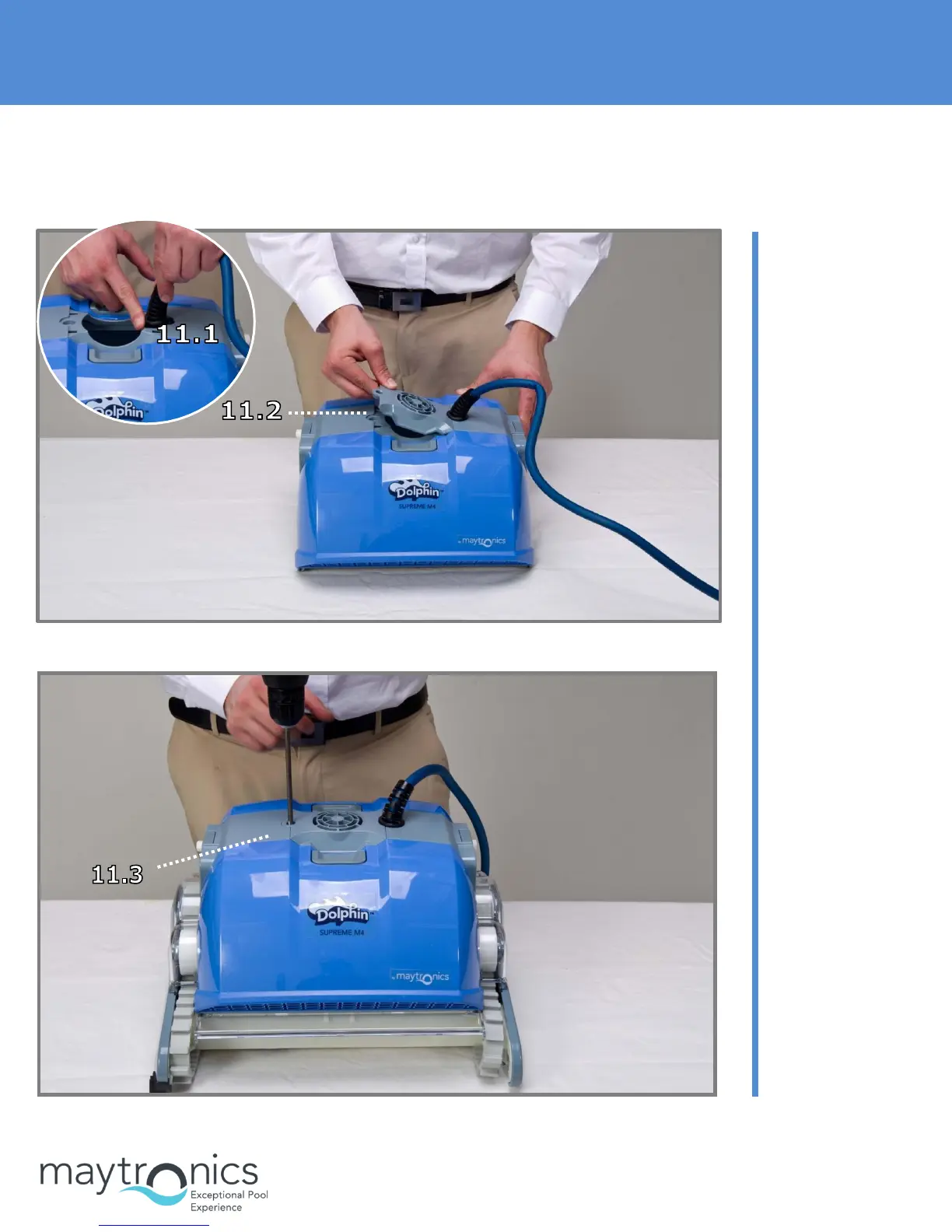

11. Assembling the Impeller Cover
Step 11.1
Place the cable
support in its
place on the outer
casing before
closing the
impeller cover.
Step 11.2
Position the
impeller cover
diagonally on the
outer casing.
Step 11.3
Secure the
impeller cover
with a KA50X12
screw.
