5. Assembling the Driving System and Side Cover

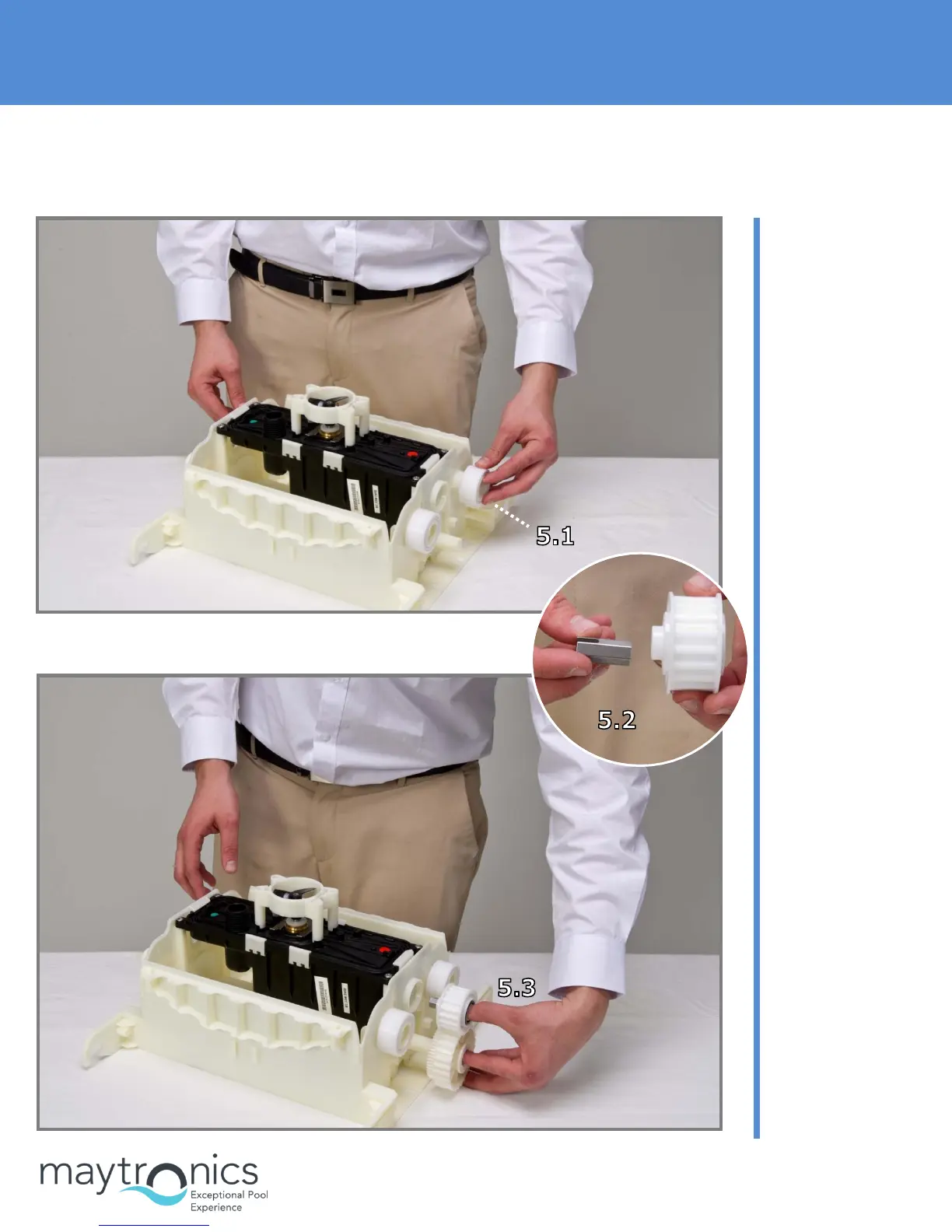

Step 5.1
Place the guide
wheels on the
side of the motor
shaft.
Step 5.2
Put the hexagon
adaptor into the
pulley.
Step 5.3
Put the pulley and
the Active Brush
gear in their
places.
