Supreme M4 Disassembly Instructions
Page 8 of 10

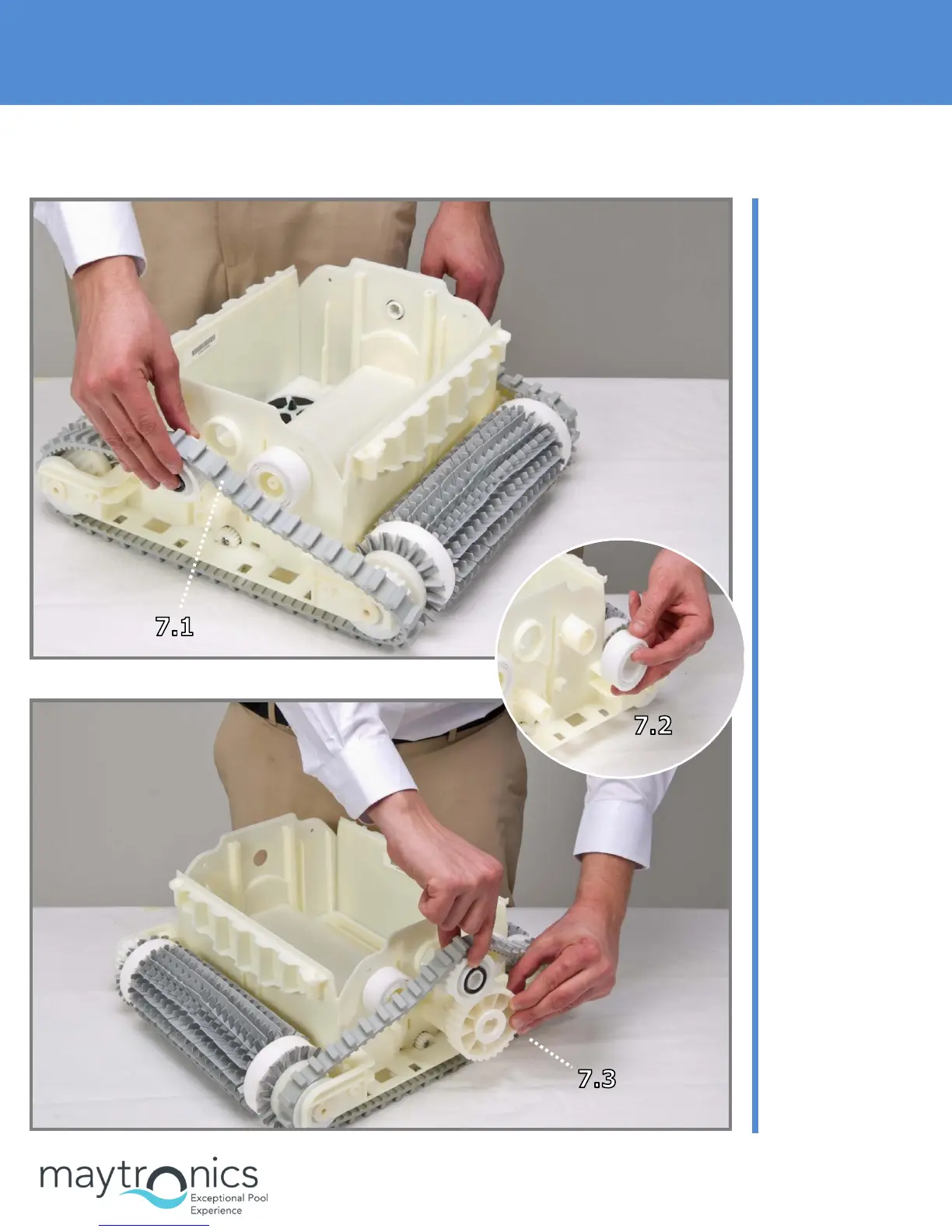

7. Dismantling the Driving System
Step 7.1
Remove the pulley
together with the
track from one side
of the robot.
Step 7.2
Remove guide
wheels.
Step 7.3
Remove the pulley
together with the
track and Active
Brush’s driving
wheel from the
other side of the
robot.
