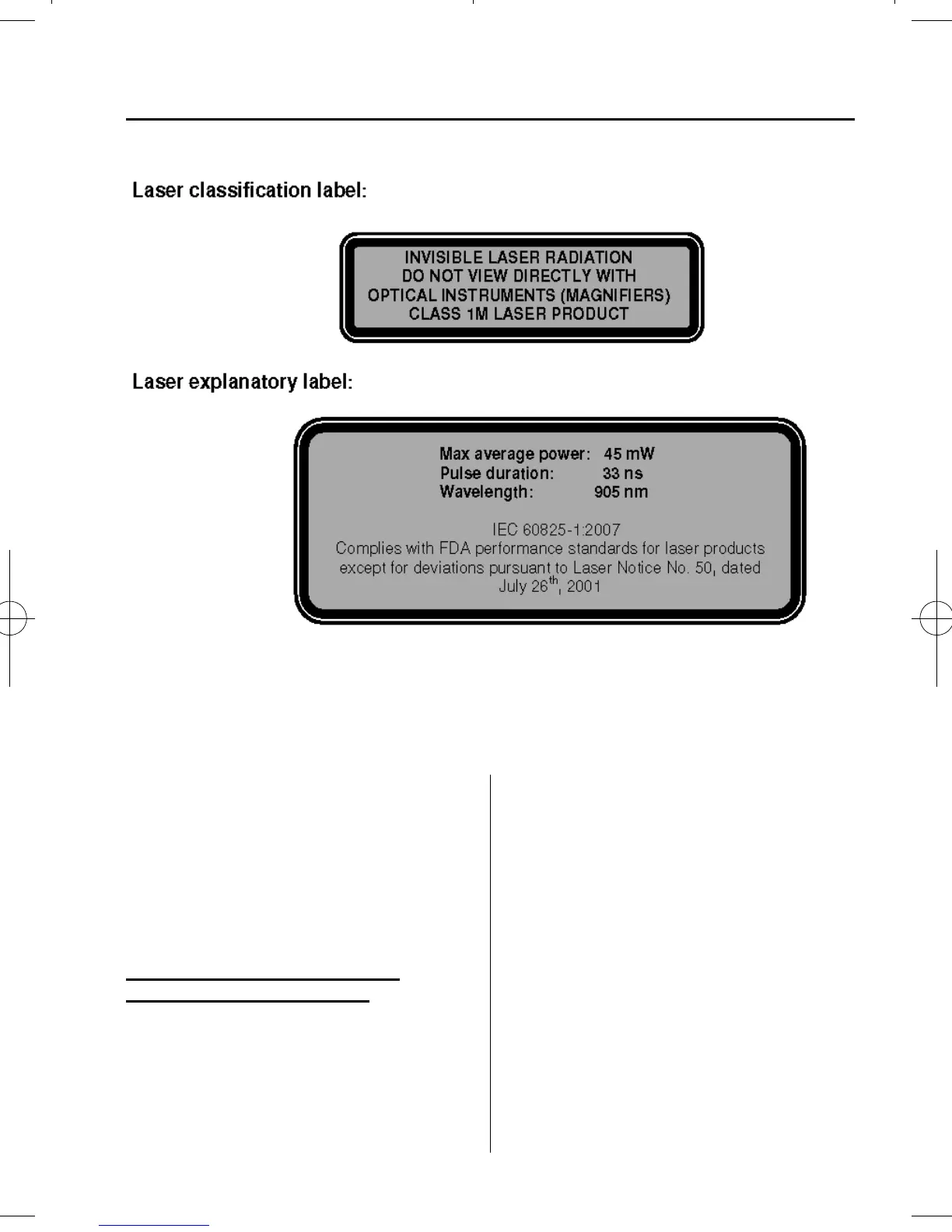

Laser sensor radiation data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wavelength: 905 nm
Divergence angle (horizontal×vertical): 28 degrees×12 degrees
q
Stopping The Smart City Brake
Support (SCBS) System Operation
The Smart City Brake Support (SCBS)
system can be deactivated. Refer to
Personalization Features on page 9-10.
When the engine is restarted, the system
becomes operational.
With Smart City Brak e Support
(SCBS) OFF Indicator Light
When the Smart City Brake Support
(SCBS) system is turned off, the Smart
City Brake Support (SCBS) OFF indicator
light turns on.
NOTE
When the TCS OFF switch is pressed to stop
the TCS operation, the Smart City Brake
Support (SCBS) system operation also stops
and the Smart City Brake Support (SCBS)
OFF indicator light turns on.
When Driving
Brake
4-81
