BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–73
09-80B

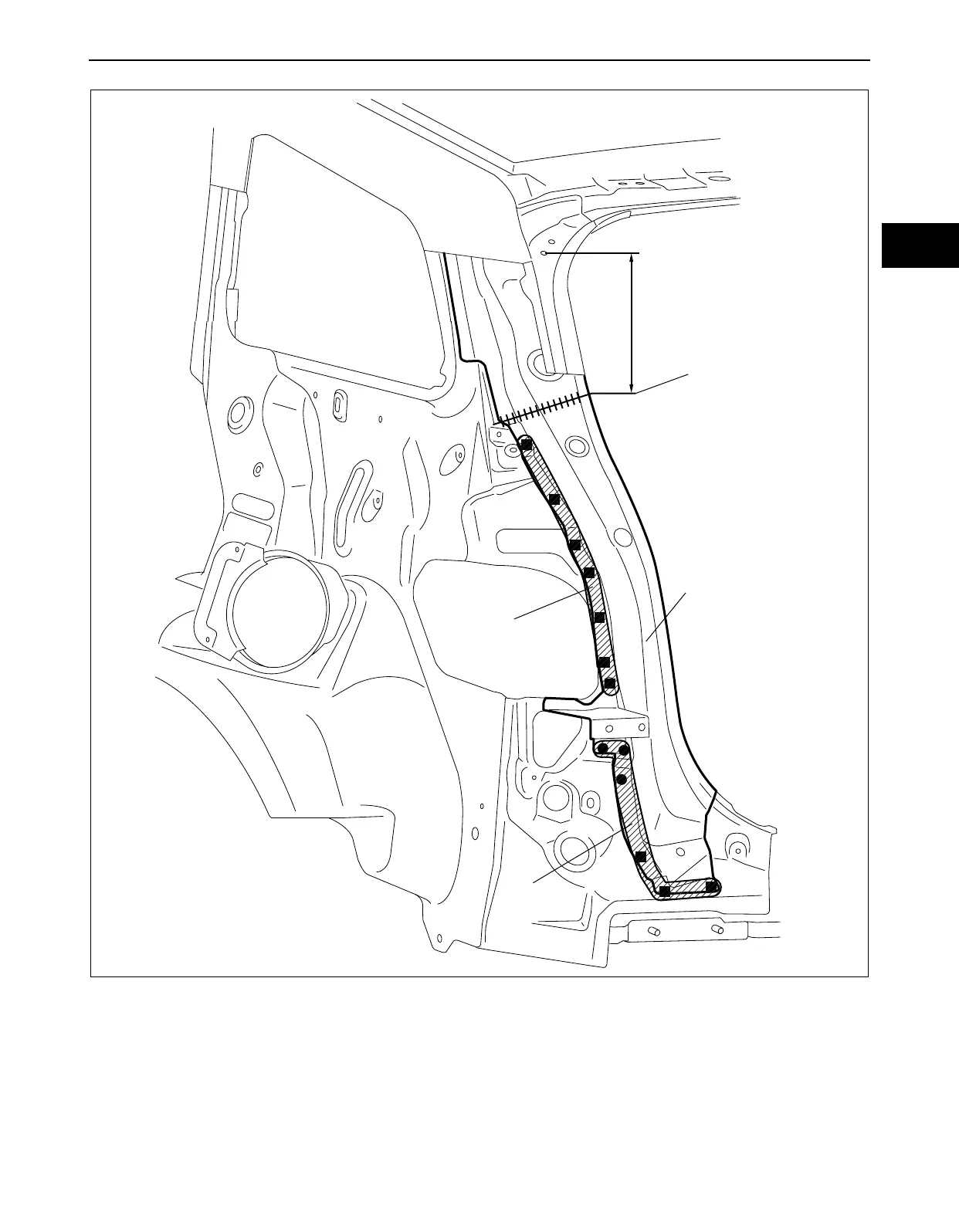

4. Install the rear pillar reinforcement.
CUT-AND JOIN
LOCATION
REAR PILLAR
REINFORCEMENT
9
6
{9.84in}
250mm
acxuub00000127
