BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–44

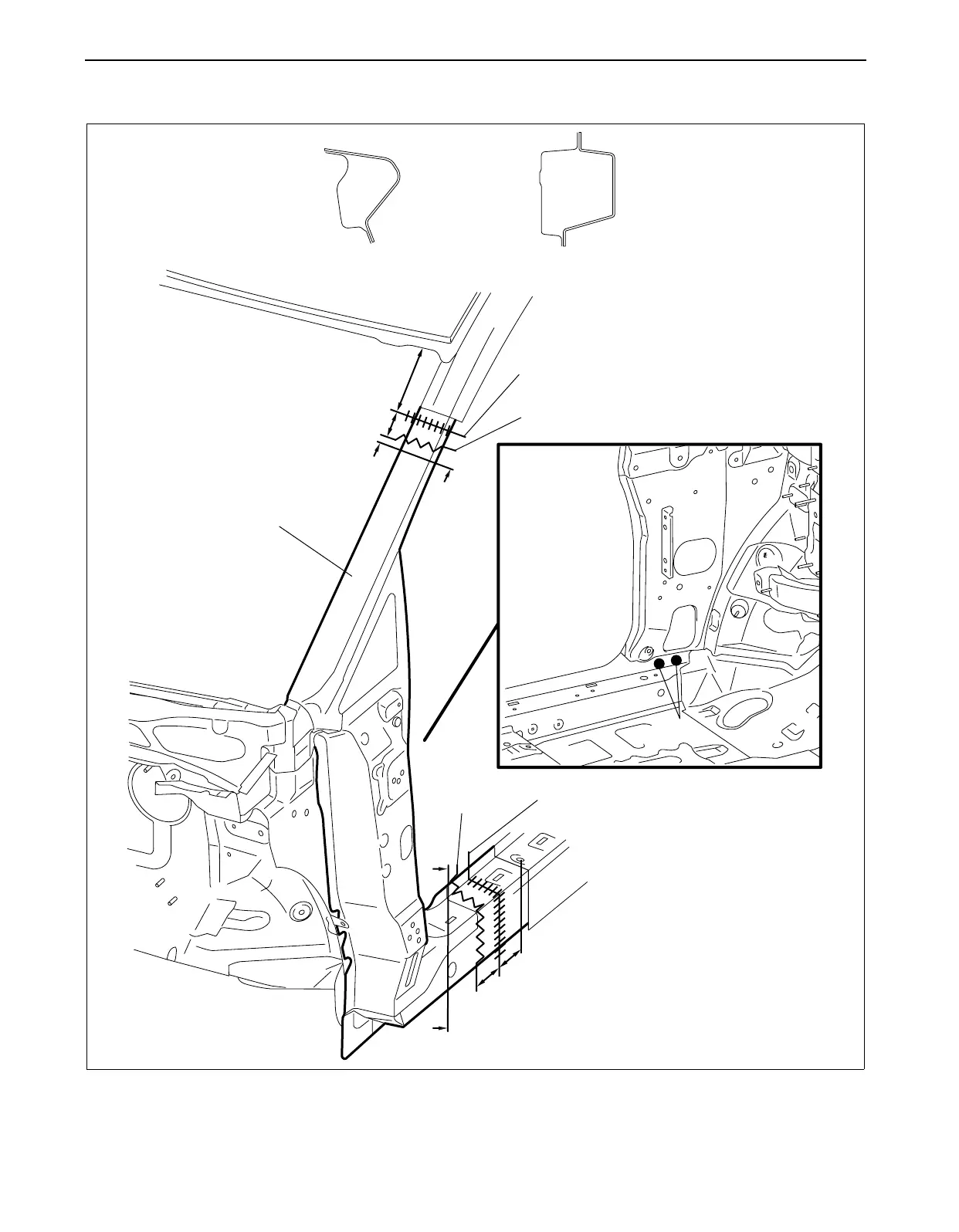

4. Rough cut area (D).
5. Drill the 2 locations indicated by (E) from the interior.
6. Remove the front pillar reinforcement.
(E)2
FRONT PILLAR
REINFORCEMENT
CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
30mm
{1.18in}
125mm
{4.92in}
110mm {4.33in}
40mm {1.57in}
(D)
A
A
A-A
B-B
B
B
CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
(D)
acxuub00000098
