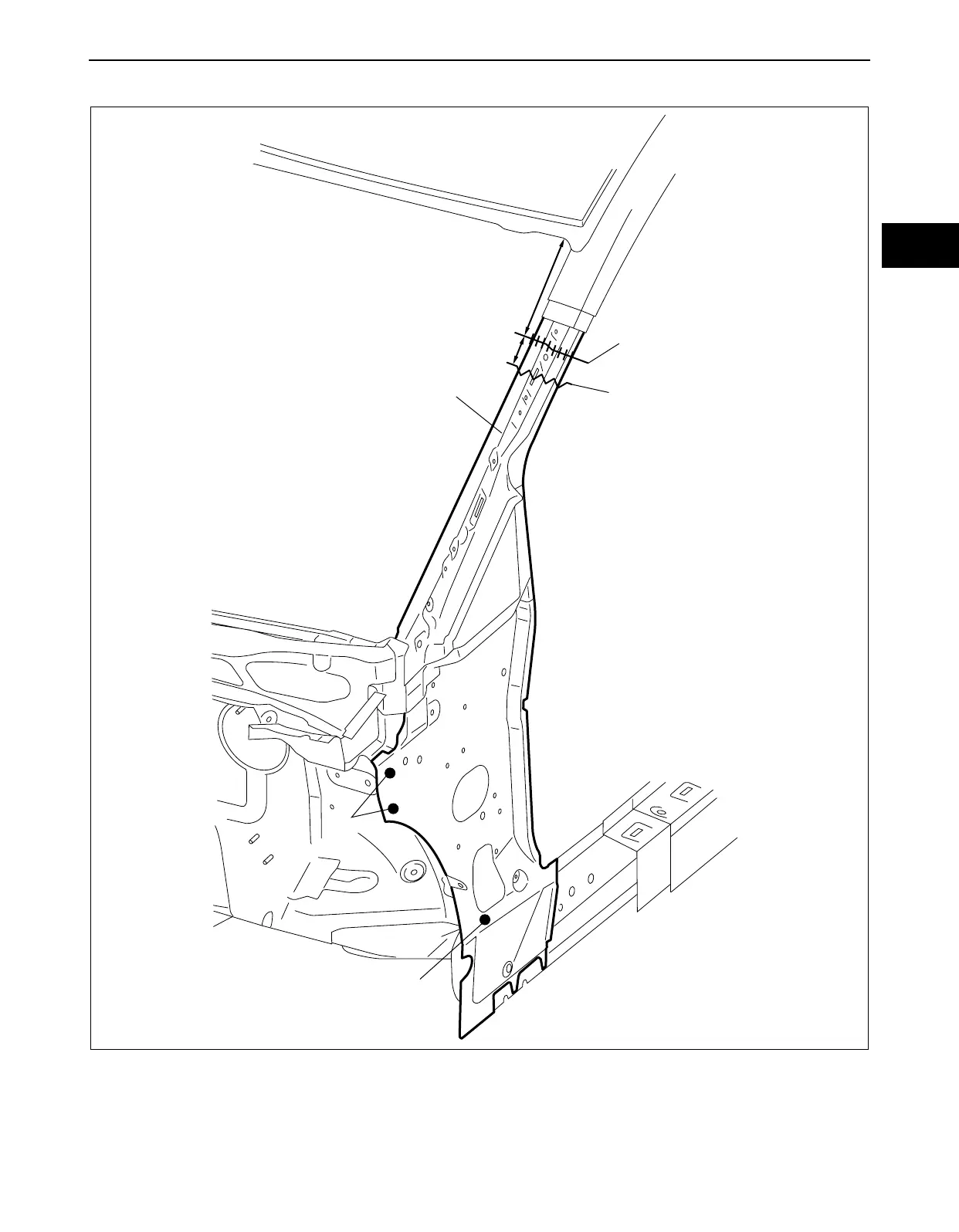

7. Rough cut area (F), drill the 3 locations indicated by (G), and then remove the front pillar (inner).
8. Remove the spot weld sealer using a disc grinder.
End Of Sie
(G)2
(F)
(G)1
FRONT PILLAR (INNER)
CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
30mm {1.18in}
190mm
{7.48in}
acxuub00000099
