BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–49
09-80B
11. After temporarily installing new parts, make sure the related parts fit properly.

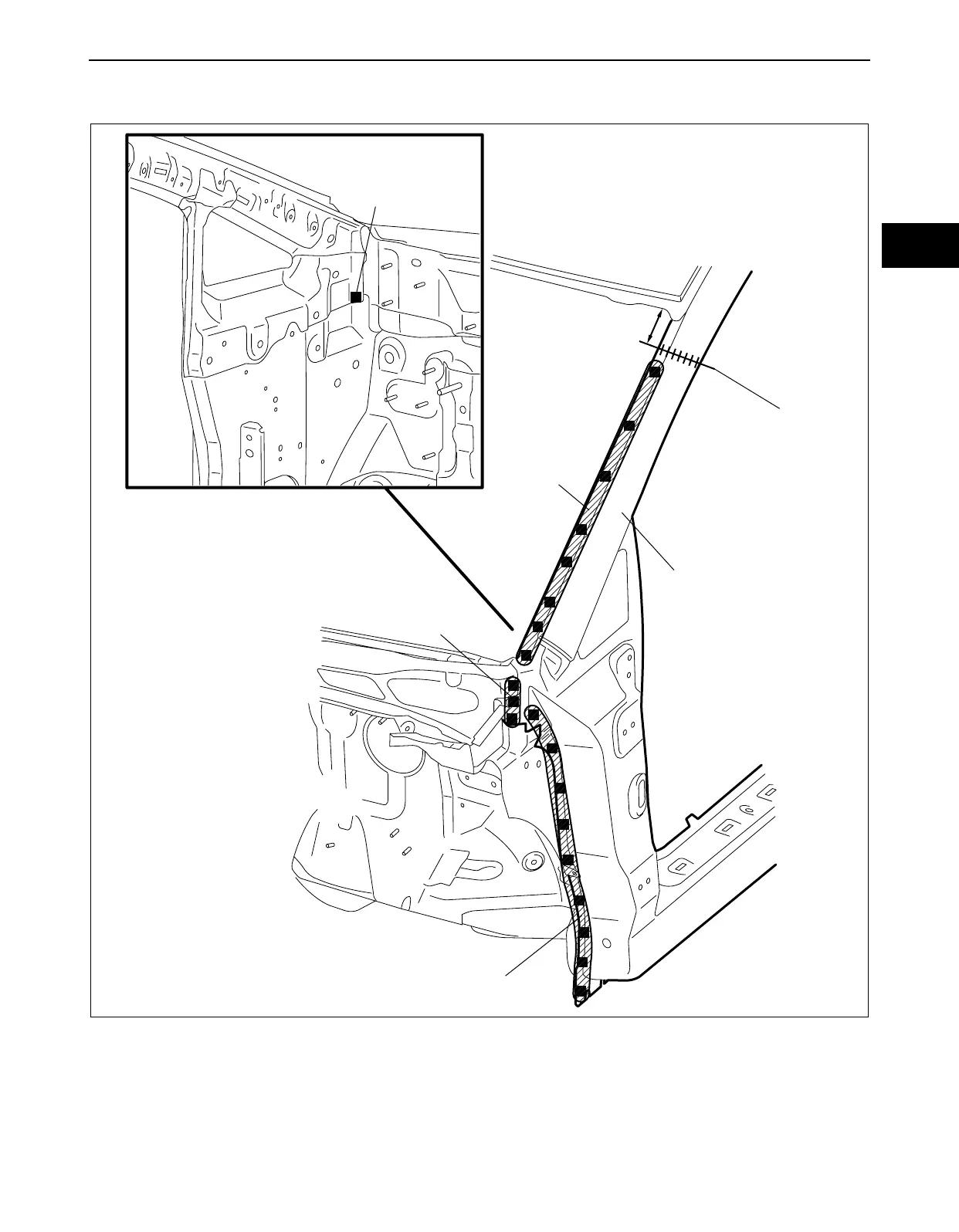

12. Drill the 1 locations indicated by (D) from the interior.
13. Weld the 81 locations indicated by (E) and install the front pillar (outer).
(D)1
(E)12
(E)3
(E)18
CUT-AND-JOIN
LOCATION
FRONT PILLAR
(OUTER)
50mm {1.97in}
acxuub00000102
3419-1U-06C(09-80B).fm 49 ページ ２００６年３月２４日 金曜日 午後４時４７分
