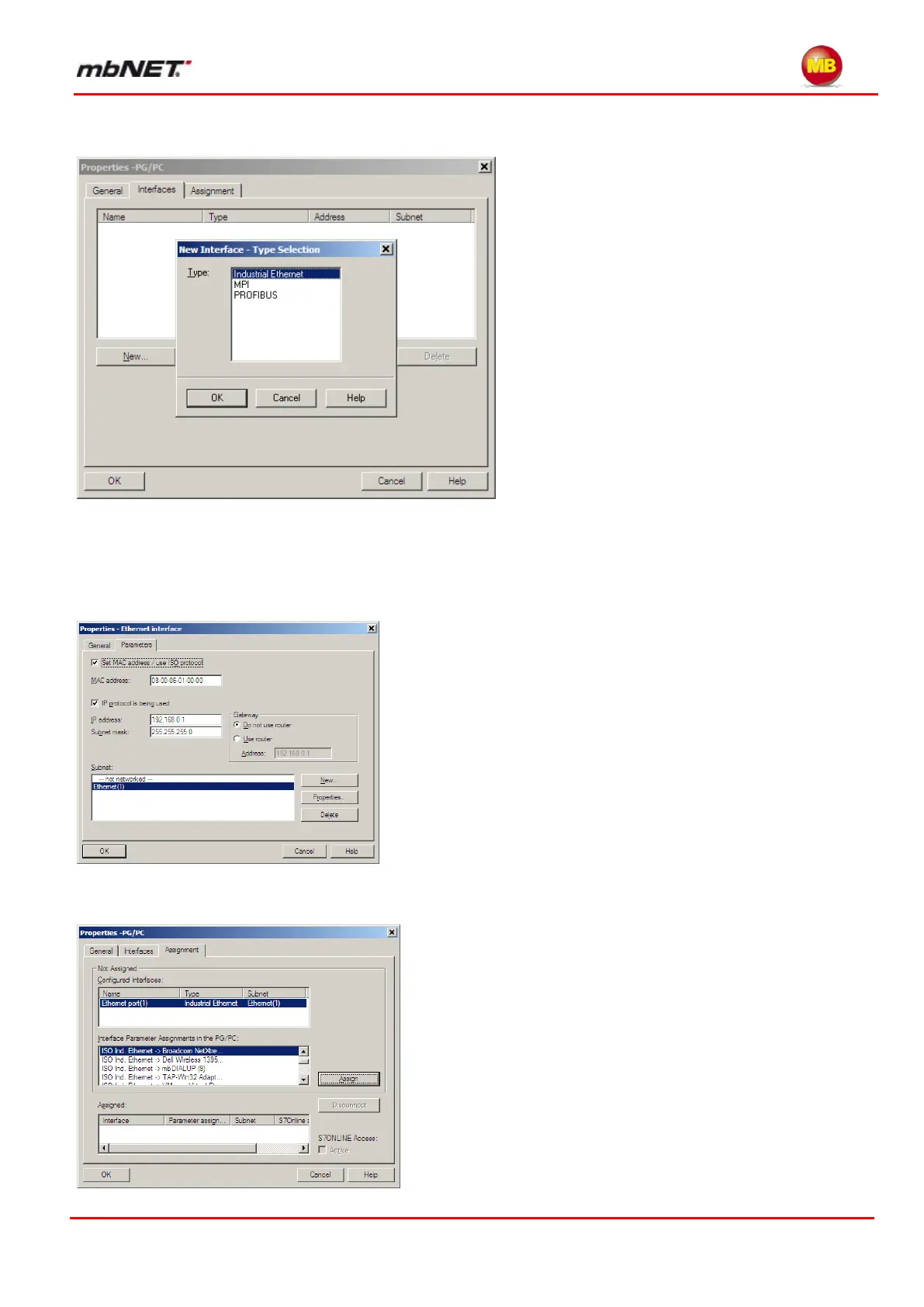

Double clicking on “PG/PC Station” opens the Properties window for this. Here, you need to add
this interface by selecting “Interfaces -> New …-> Industrial Ethernet“.
This opens a window where you need to make the “Industrial Ethernet” settings for the PC.
Specify the PG/PC subnet mask and IP address here. The PG/PC IP address can be from any-
where in the network range but may not overlap with other addresses on the network and must
not be the real IP address of the PG/PC.
Next, in the “Assignment” tab, find the interface that you intend to use as the “Ethernet Interface”
and link this to “TCP/IP (Auto) -> xxx” (the LAN card in use) by clicking on the “Assign” button.
