McAfee NS7200 - Connect the Management and Console Ports

• 4-port 10/1 GigE MM 50 micron with internal fail-open interface module
• 4-port 10/1 GigE MM 62.5 micron with internal fail-open interface module
a

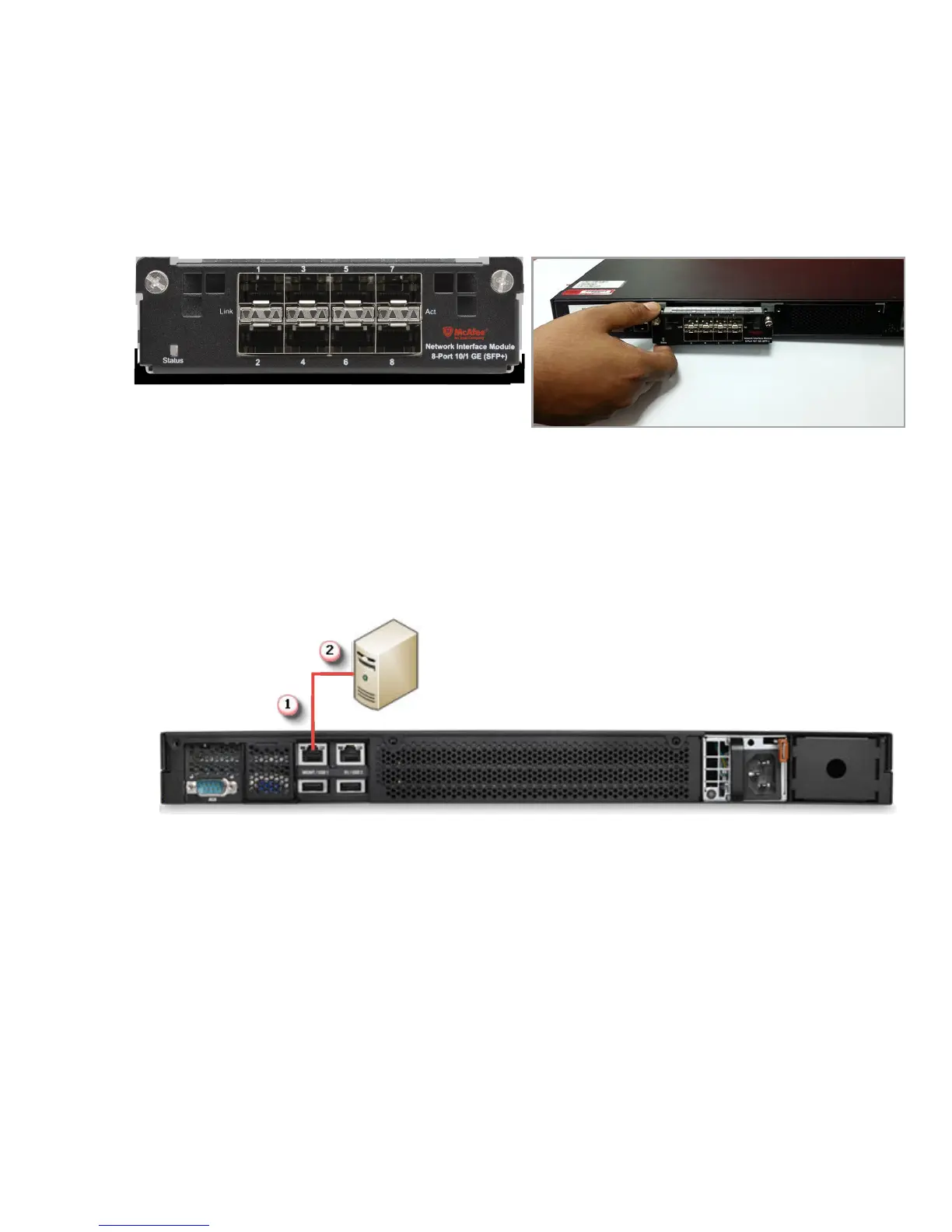

Remove the module from its protective packaging.
b
Hold the module using your thumb and forenger and insert it into the modular bay.
c
Drive in the screws xed on the sides of the module to attach it to the Sensor.
5 Connect the Management and Console ports
a
On the rear panel of the NS7x00 Sensors, plug a Category 5e Ethernet cable in the Management port
(labeled Mgmt).
b
Plug the other end of the cable into the network device connected to your Manager server.
7
