McCONNEL MULTIDRIVEM380‐4&M420‐4
70

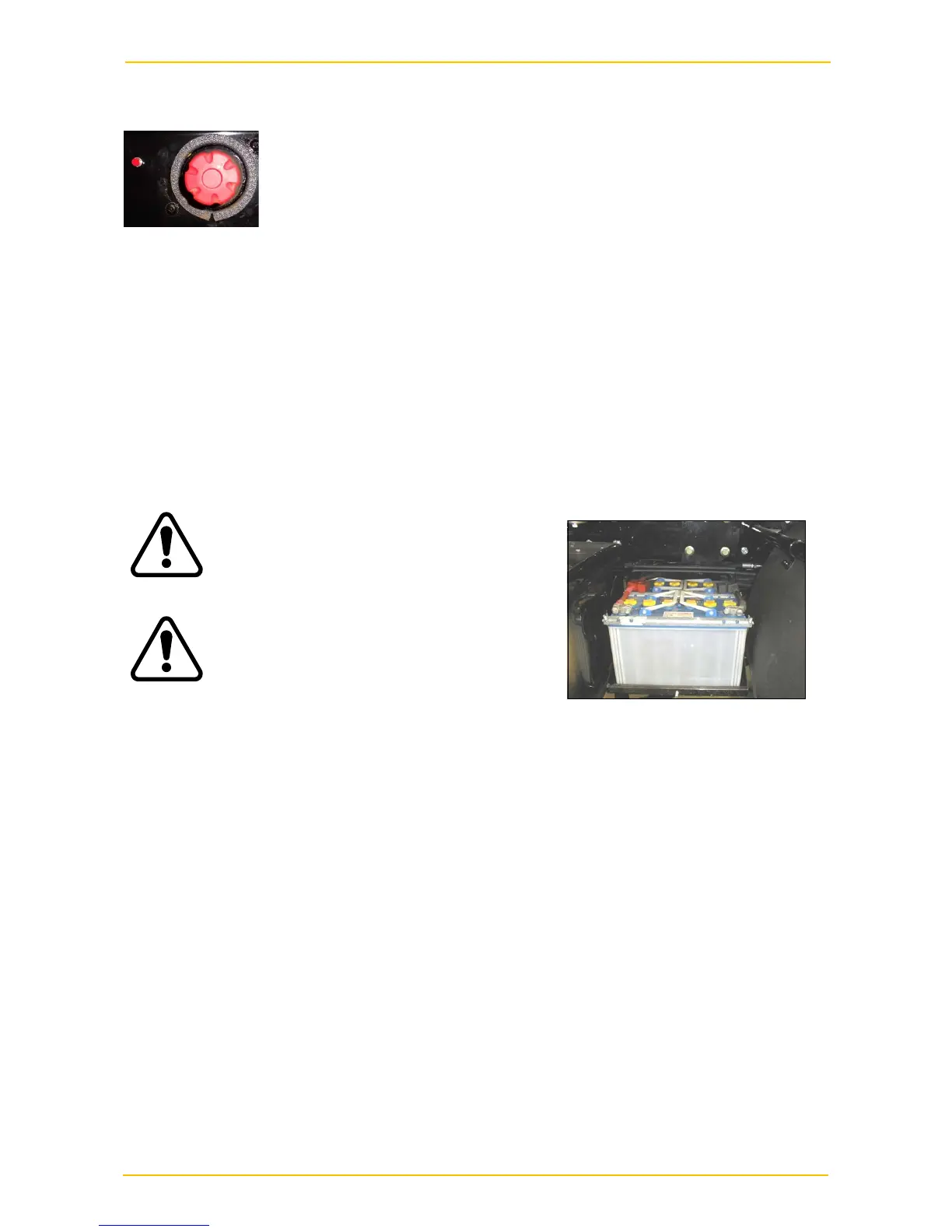

Isolator / Emergency Stop Switch
Checking Batteries
The batteries are located on the offside of the vehicle in front of the hydraulic tank.
Remove the protective cover to allow access to both batteries.
Remove the filler caps to check the electrolyte level. Fill to level mark, using only distilled
water. Clean terminals if corroded, remove corrosion, and then coat terminals with
protective grease.
Warning
Wear protective goggles and clothing when
checking electrolyte level.
Battery gas can explode; keep naked
flames away from the battery. Under no
circumstances test the battery charge level
by shorting the battery terminals
.
Battery
The battery isolator switch with red knob, is located on the off-side
of the cab skirt above the batteries. Press to isolate – turn
clockwise to re-engage. Unless in emergency always wait for the
red LED to the left hand side of the switch to cease to illuminate
before pressing the isolator.
