Legend:
1 = Oil filler tube with oil dipstick.
2 = Oil drain plug M38 x 1,5
3 = Removable canister filter (ZF-fine filter)

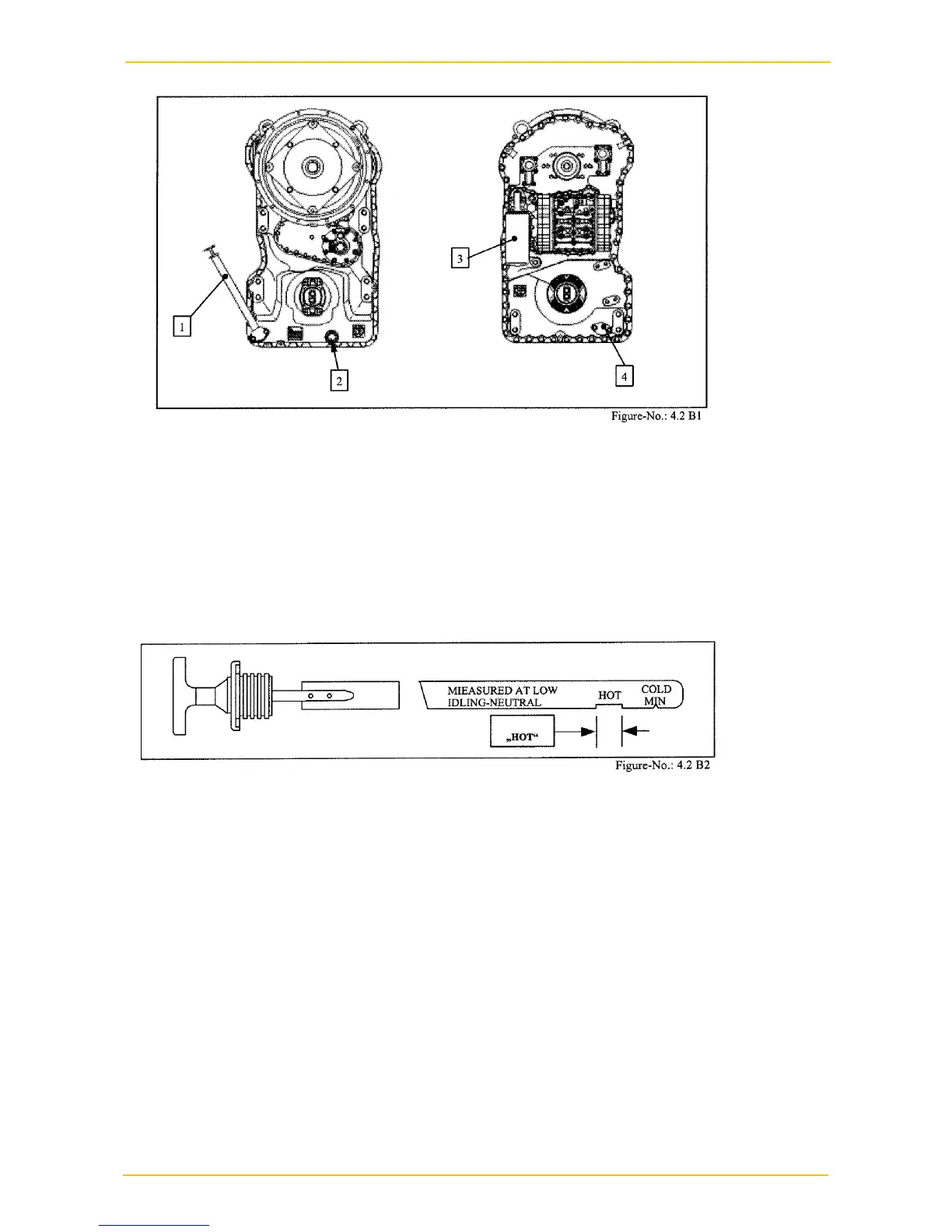

Figure 67, ZF gearbox
Oil Change and Filter Replacement Interval:
The oil must be changed after the first 100 operating hours of work.
Every further oil change should be after 1000 operating hours of work, or at least
once a year!
At every oil change, the transmission pressure filter must be replaced, using only
the genuine ZF-Fine filter.
Use of non-genuine filters will compromise the operation of the transmission, and
any warranty work will be rejected if due to fitting non-genuine parts.
