19. Saw chain
20.
Spiked bumper (Accessory on CS410 Elite)
21. Knob
22. Chain catcher
23. Chain tensioning screw
24. Clutch cover
25. Integrated combination wrench
26. Throttle trigger
27. Guide bar cover
28. Combination wrench
29. Operator's manual

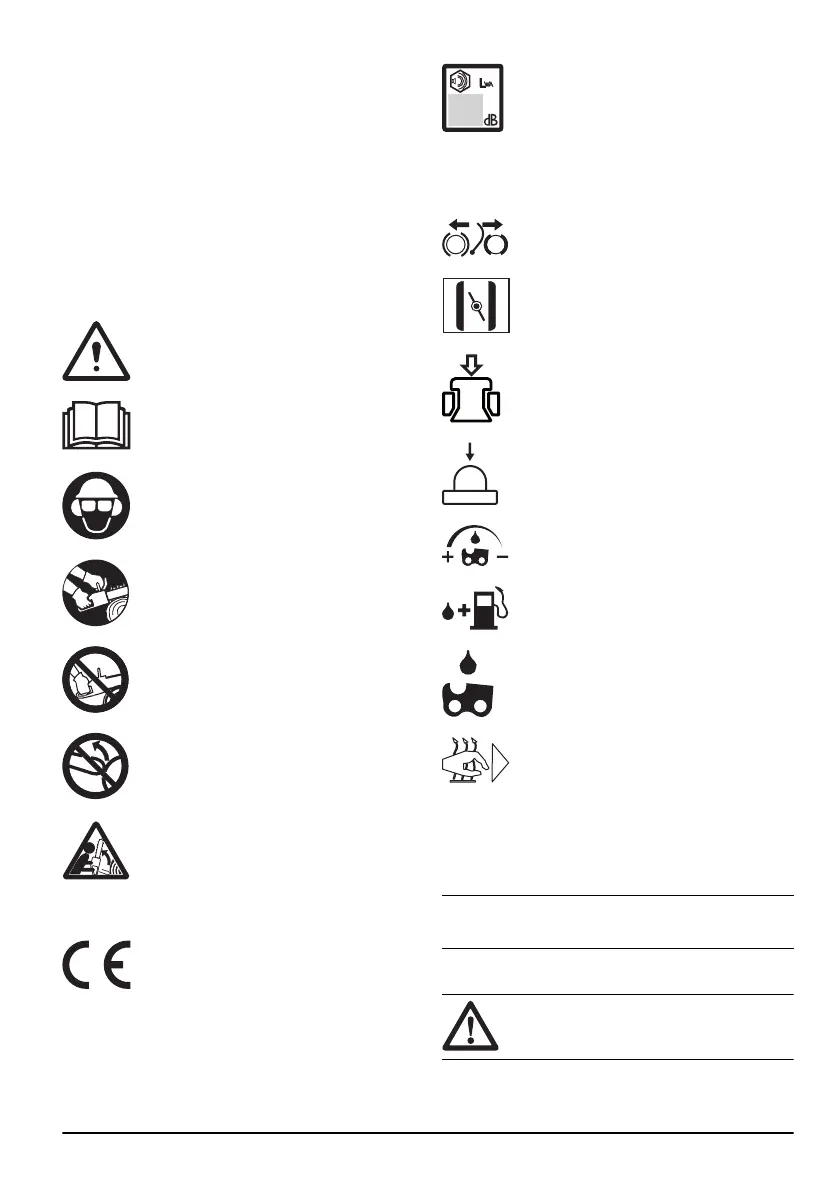

Symbols on the product
Be careful and use the product correctly.
This product can cause serious injury or
death to the operator or others.
Read the operator's manual carefully and
make sure that you understand the
instructions before you use this product.
Always wear approved protective helmet,
approved hearing protection and eye
protection.
Use 2 hands to operate the product.
Do not operate the product with one hand.
Do not let the guide bar tip touch an
object.
Warning! Kickback can occur when the
guide bar tip touches an object. A
kickback causes a lightning fat reverse
reaction that throws the guide bar up and
in the direction of the operator. Can cause
serious injury.
This product complies with applicable EC
Directives.
Noise emissions to the environment
according to European Directive
2000/14/EC and New South Wales
legislation “Protection of the Environment
Operations (Noise Control) Regulation
2017”. Noise emission data can be found
on the machine label and in the
Technical data chapter.
Chain brake, engaged (right). Chain
brake, disengaged (left).
Choke.
Decompression valve.
Air purge bulb.
Adjustment of the oil pump.
Fuel.
Chain oil.
If your product has this symbol it has
heated handles.
yyyywwxxxx The rating plate shows se-
rial number. yyyy is the
production year and ww is
the production week.
Note: Other symbols/decals on the product refer to
certification requirements for some markets.
Euro V Emissions
WARNING: Tampering with the engine
voids the EU type-approval of this product.
1733 - 002 - 23.11.2021 3
